SPEC SHEET

SLD-PK-XXXX Specifications

• Listing: CSA US-Canada Certified for Wet Locations. DLC QPL listed. BC Hydro e.Catalog listed.
• LED: Industry-leading Cree ceramic LEDs. Developed for superior lumen and thermal reliability, high light intensity, and easy optical control in a compact chip size.
• Optics: Clear impact-resistant polycarbonate (PC) lens. Surface Mounted optics for precise light control, high optical efficiency. Cutoff Visor available for increased glare reduction.
• Optical Variations: 10°, 25°, 60°, 90°, 120°, 131°, Type II, Type III
• Available CRI: 70, 80, 90
• Colour Temperature (CCT): 2700-6500 K
• Reported (and Projected) TM-21-11 LED Lumen Maintenance:
  • L90 (90% light output) > 145,000 hours (Projected 150,000 hours)
  • L70 (70% light output) > 145,000 hours (Projected 457,000 hours)
• Input Voltage: 120-277/347 VAC (50/60 Hz)
• Operating Temperature: -40˚C to +50C
• Features: 0/1-10V dimming, integrated photocell/receptacle options, multifunctional occupancy sensor, cut-off visor, additional surge protection.
• Standard Warranty: 5 years
• Construction: High-quality sheet steel housing with powder coating finish for corrosion and harsh environment protection. UL94-V0 ABS housing parts. The IP67 LED engine utilizes a robust extruded aluminum heatsink with PC lens cover. All other electrical components rated minimum IP67.
• Installation: Ceiling/Pendant/Wall mounting utilizing a standard yokestyle bracket. Pole mountings for 60 mm (2.375 in) slip-fit poles or square post applications. Suspension installation using a supplied galvanized aircraft cable kit.
• Standard Dimensions: 55x34x16 cm3 [22x13x6 in3]
• Standard Weight: 7.3—8.5 kg [16—19 lb.]

CONFIGURATION

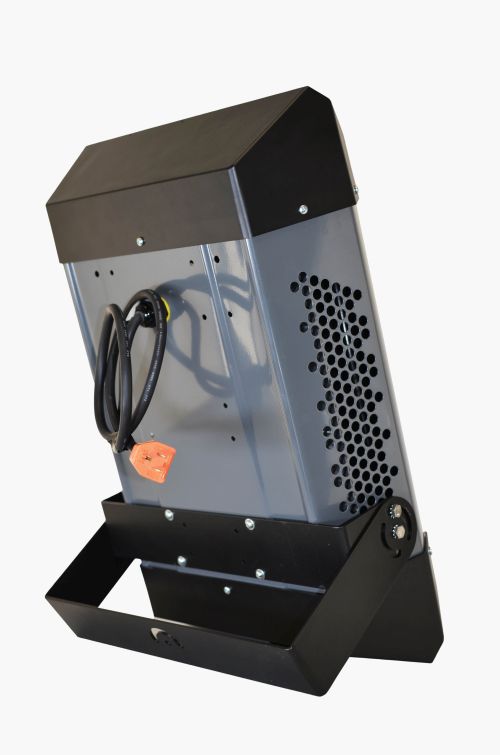

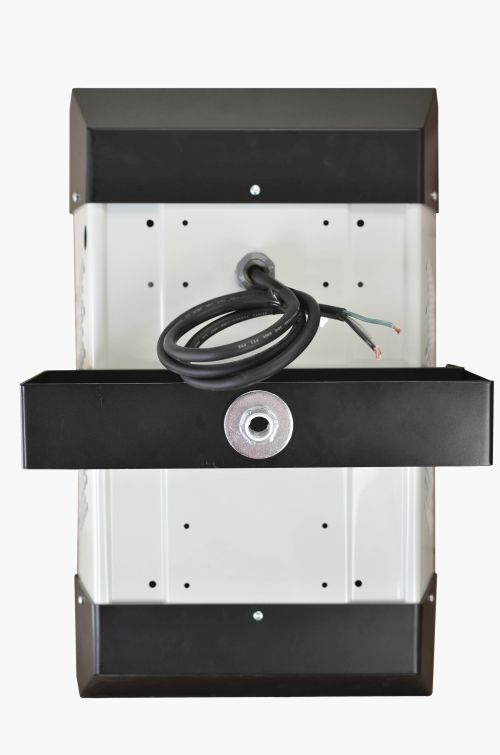

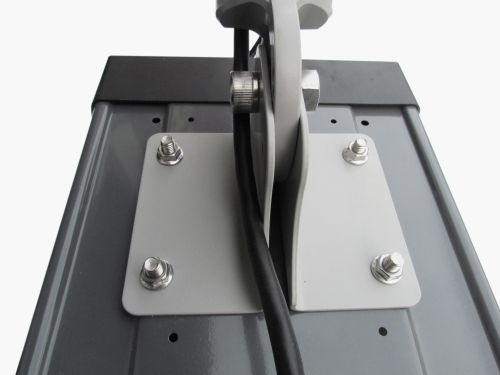

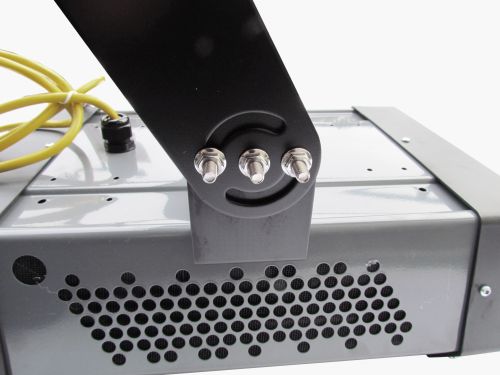

• Yoke Bracket Mount (Wall/Ceiling/Pendant)

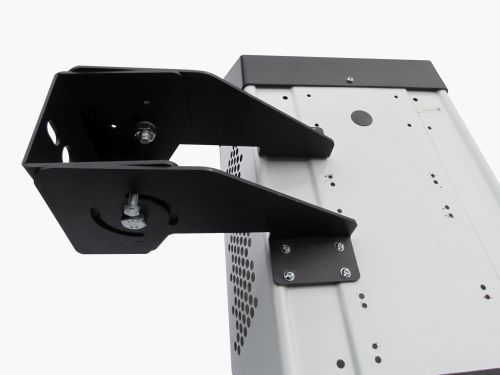

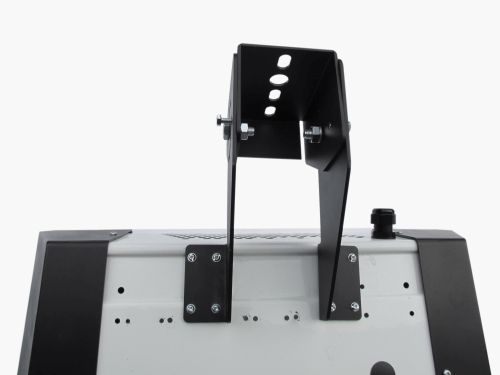

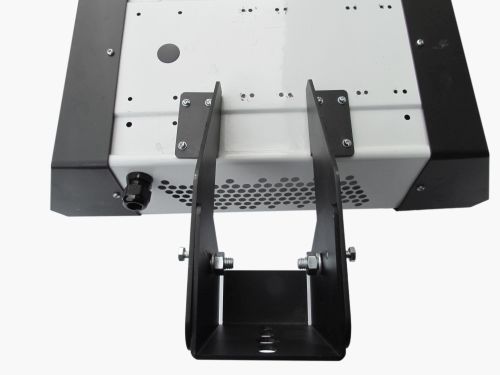

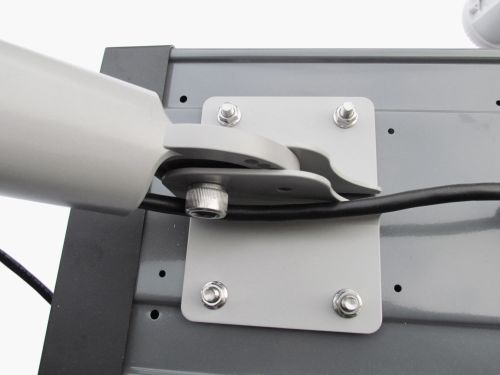

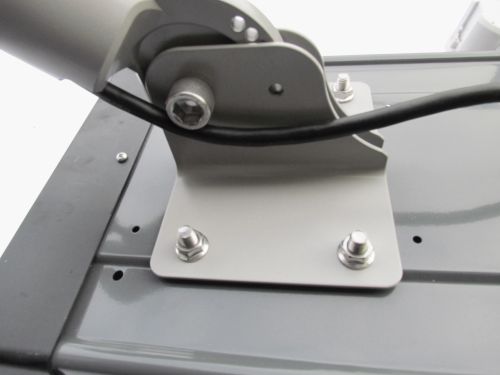

• Pole Mount (Round or Square Pole)
• Suspension Mounted
• Pendant Mounted
• 0/1-10V Dimming
• Photocell
• ANSI Receptacle
• Surge Protection
• Cut-off Visor

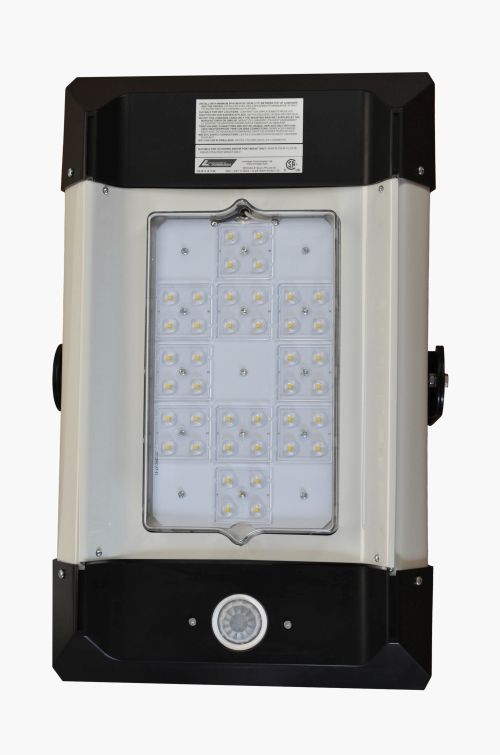

• Occupancy Sensor
