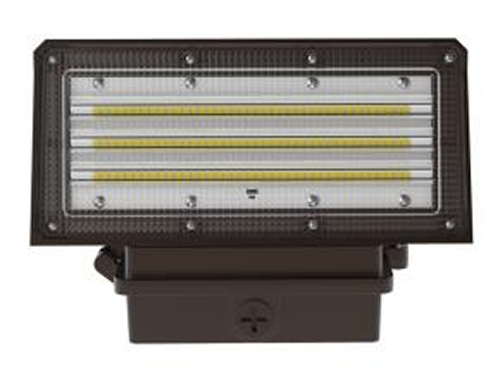

Brono LED Wall Pack Adjustable Series

The Brono wall pack series is a contemporary, commercial- grade area luminaire. The adjustable LED wall pack light allows you to adjust the head of the fixture up to almost 90 degrees.

Use:
industrial
commercial

Application:
Exterior building,Tunnel,Walkway,Wall,Entryway

Description

The Brono wall pack series is a contemporary, commercial-grade area luminaire. The adjustable LED wall pack light allows you to adjust the head of the fixture up to almost 90 degrees. Typical applications include pedestrian walkways, building entrances, multi-use facilities, industrial facilities, perimeter parking areas, storage facilities, institutions, schools, and loading docks.

SPEC SHEET

Variations SKU NUMBERDelivered Lumens (lm)Wattage (W)Efficacy (lm/W)Input VoltageSize (cm)Weight (KG)
BRO-WP-0030-A3,25025130100-277V17x20x112.2
BRO-WP-0040-A4,68036130100-277V17x20x112.2
BRO-WP-0060-A7,80060130100-277V24x29x164.0
BRO-WP-0080-A10,40080130100-277V24x29x164.0

BRO-WP -A Specifications:

  • Lumen Output: 3000 lm / 4320 lm / 7200 lm / 9600 lm
  • Wattage: 25W / 36W / 60W / 80W
  • Voltage: AC100 - 277V
  • Dimensions: 168X199X107 mm / 242X288X160 mm
  • Available Color Temperature: 4000K / 5000K / 6000K
  • L70: ≥50,000 hours
  • Weight: 2.2kg / 4kg
  • Warranty: 5 years
  • Rating: IP65
  • Application: Outdoor
  • Installation: Wall Mount / Surface Mount

SPEC SHEET DOWNLOAD



IES

IES Download

Installation guide

Installation guide Download
