High Mast Light Helos PLUS Series

SLD-XM fixtures are designed for maximum performance and reliability required in the most challenging high-mast lighting applications with 85,500 delivered lumens and a wide variety of beam angles.

Use:
industrial
municipal

Application:
Sports Facility, Construction Site, Interstate Highway, Roadway,Mining, Port & Rail Yard, Industrial,Searching and rescue

Description

The HELOS-PLUS fixtures are designed for maximum output and compactness to fulfill the most challenging high output lighting applications. Utilizing only top-of-the-line components for the LED engine, these fixtures will deliver a quality of light that is exceptional in terms of consistency and intensity. With its exceptional heat sink design, these fixtures are over engineered to provide the greatest reliability in even the most extreme environments. Lumingen’s fixtures are also backed by our world class technical support helping you rest easy with your lighting needs.

SPEC SHEET

Variations SKU NUMBERDelivered Lumens (lm)Wattage (W)Efficacy (lm/W)Input VoltageSize (cm)Weight (KG)
SLD-XM-040043,800371118100-277V/ 347V/ 480V40X45X1614.0
SLD-XM-080085,560739118100-277V/ 347V/ 480V70X45X1620.0

HELOS-PLUS-X Specifications:

  • Listing: CSA US-Canada Certified for Wet Locations. DLC QPL listed. BC Hydro e.Catalog listed.
  • LED: Industry-leading Cree ceramic LEDs. Developed for superior lumen and thermal reliability, high light intensity, and easy optical control in a compact chip size.
  • Optics: Clear impact-resistant polycarbonate (PC) lens. Surface Mounted optics for precise light control and high optical efficiency. 120° FWHM Standard (no additional optics)
  • Optical Variations: 25°, 40°, 60°, 90°, 131°, Type II, Type III
  • Available CRI: 70, 80, 90
  • Color Temperature (CCT): 2700-6500 K
  • Available Features: 0/1-10V dimming, integrated photocell/ receptacle options, additional surge protection.

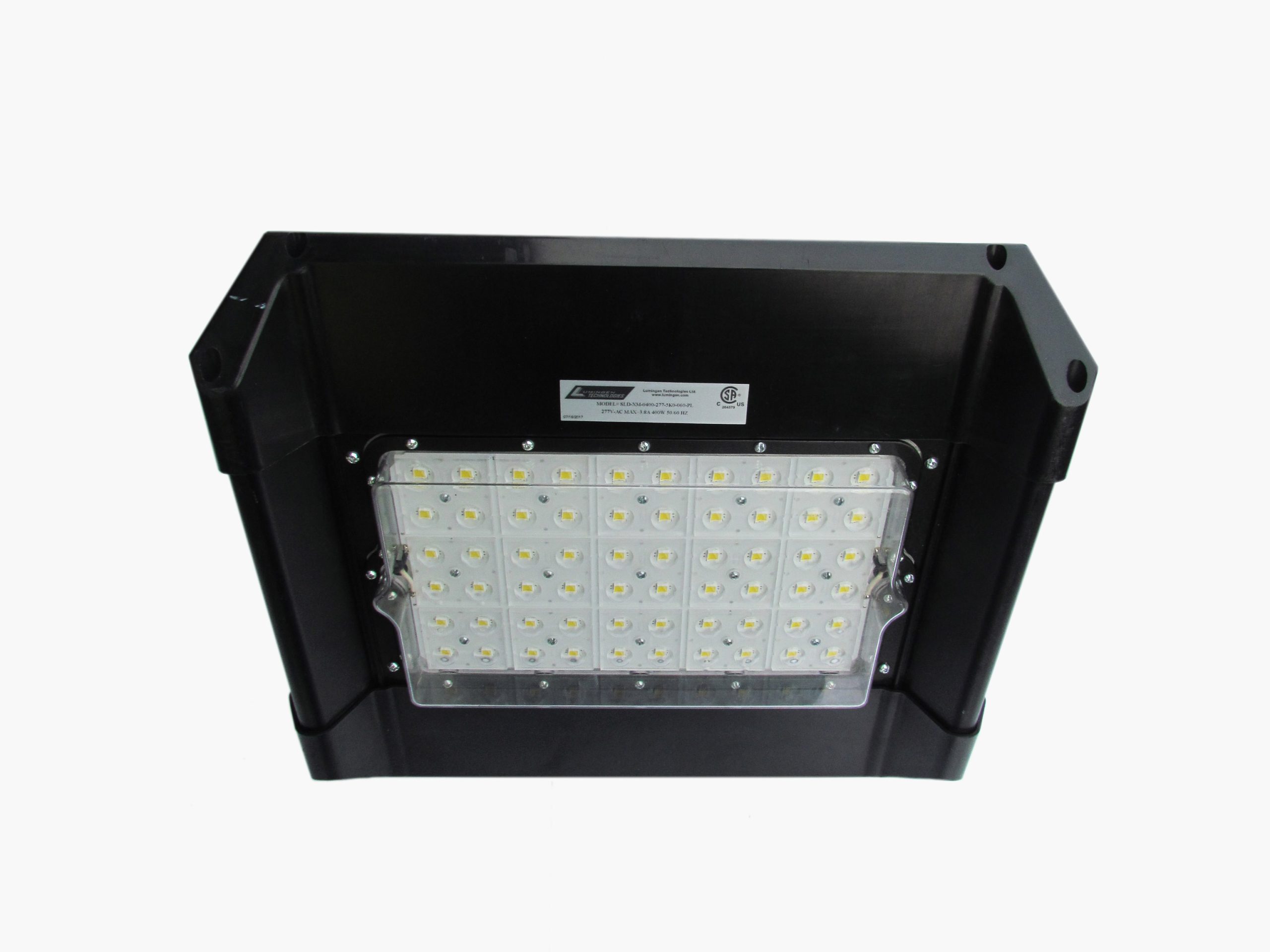

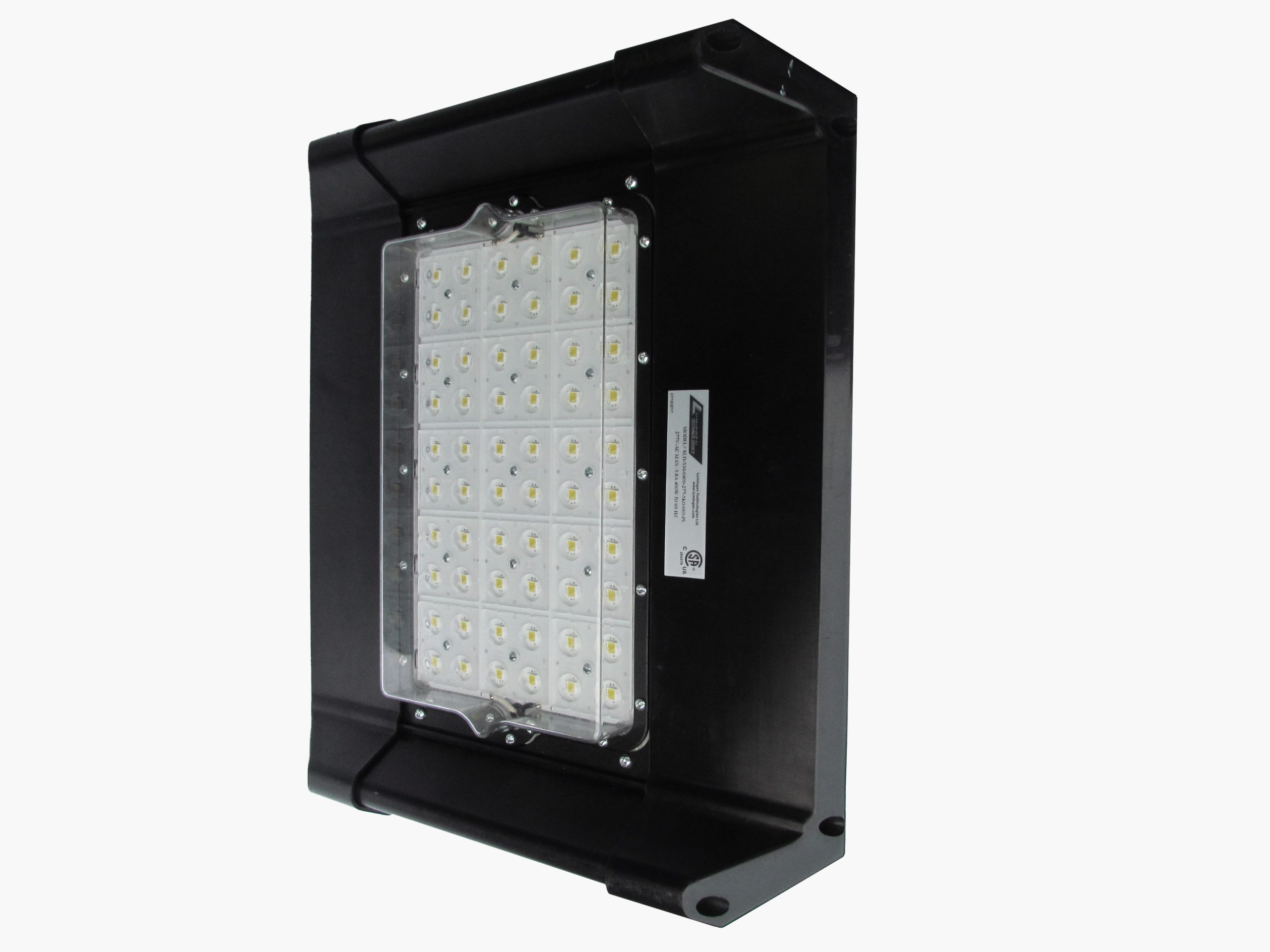

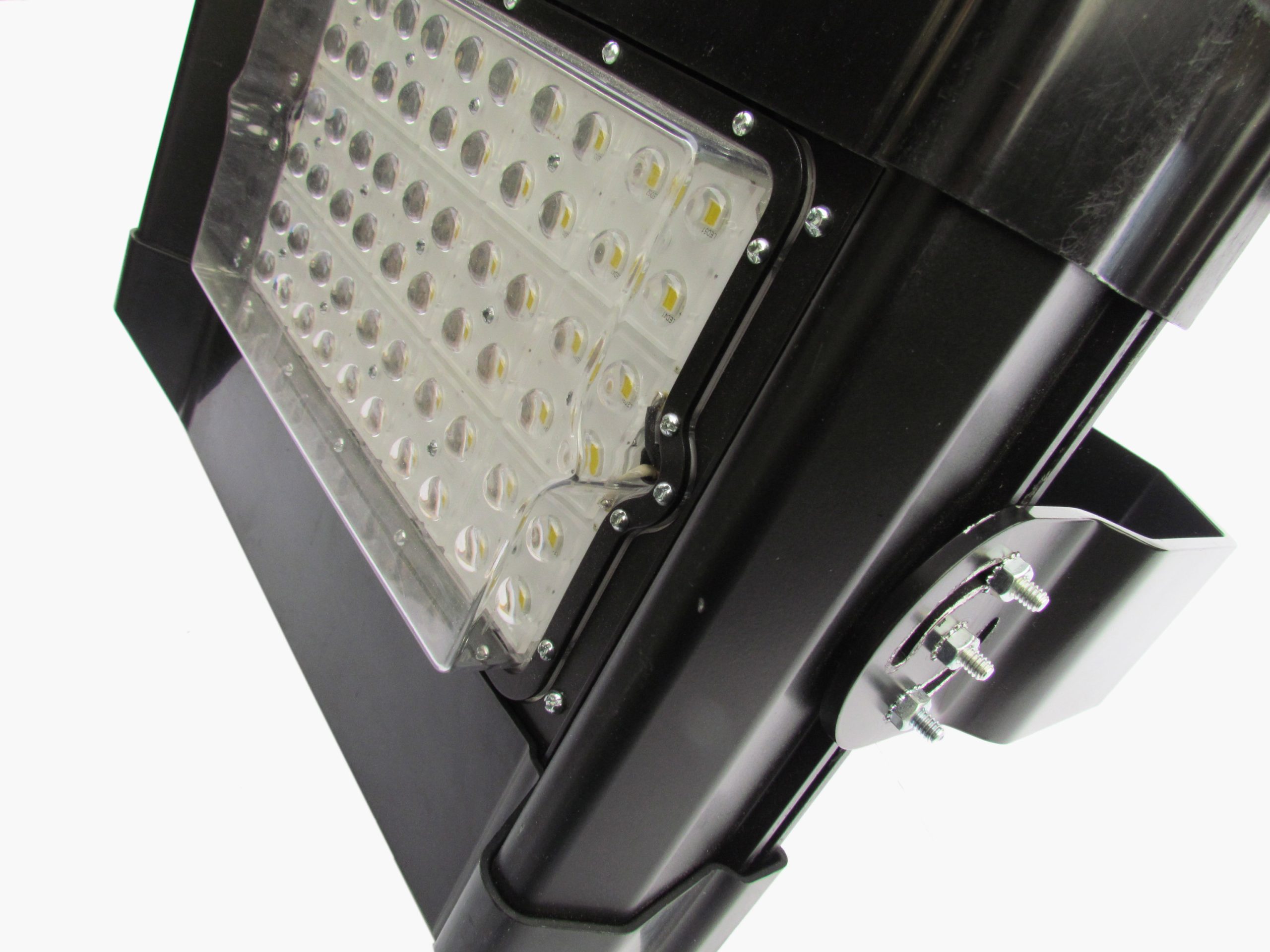

  • Construction: High-quality aluminum extrusion parts with powder coating finish for corrosion and harsh environment protection. ABS UL94-V0 end cap housing parts. The IP67 LED engine utilizes a robust extruded aluminum heatsink with PC lens cover.
  • Standard Dimensions:

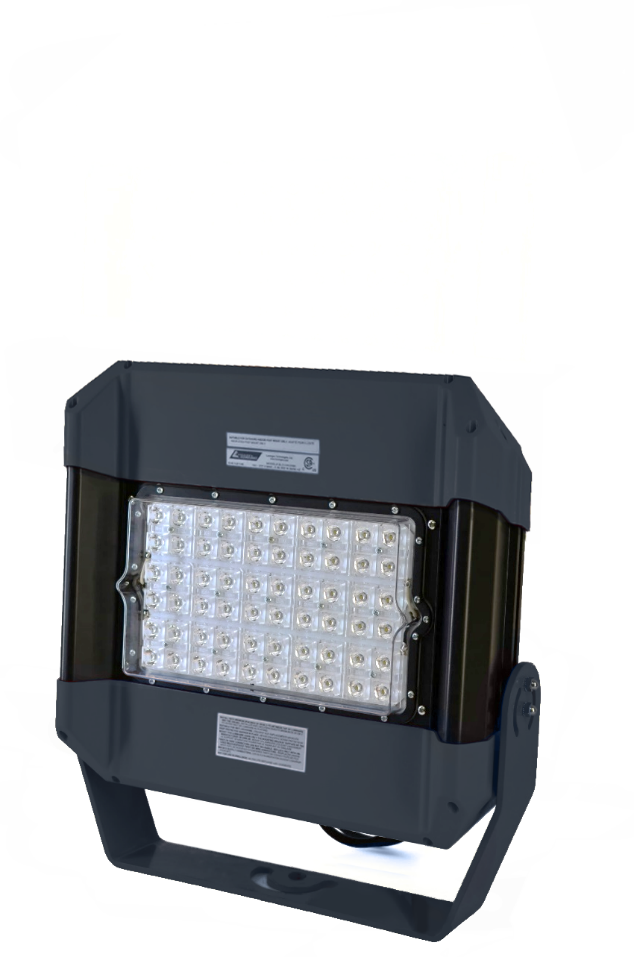

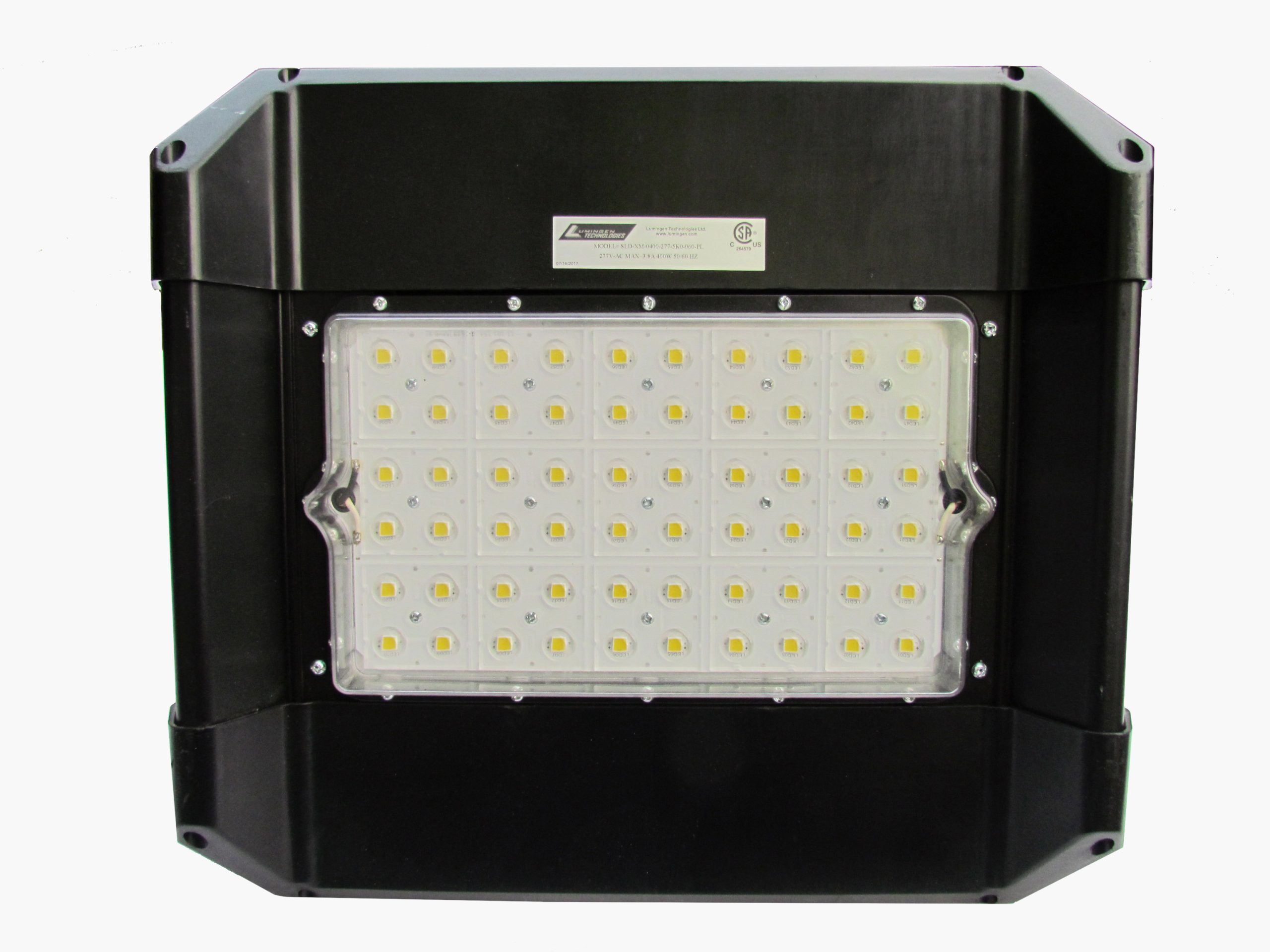

    • Single Engine: 40 cm x 45 cm x 16 cm [16” x 18” x 7”]

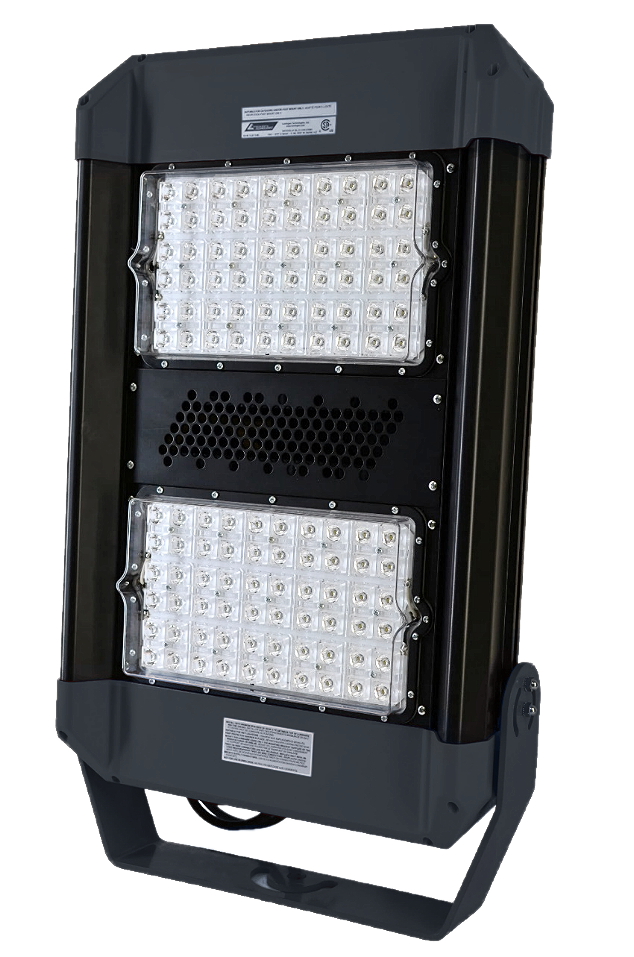

    • Dual Engine: 70 cm x 45 cm x 16 cm [28” x 18” x 7”]
  • Standard Weight (Single Engine, Dual Engine): 10 kg, 20 kg [22 lb., 43 lb.]

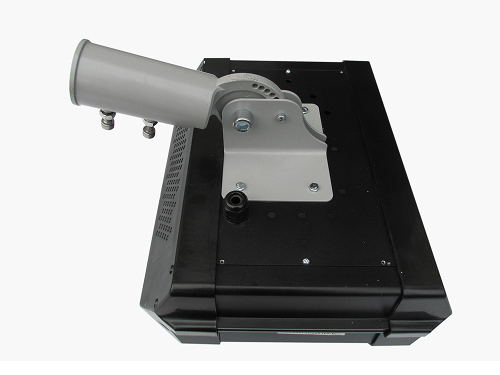

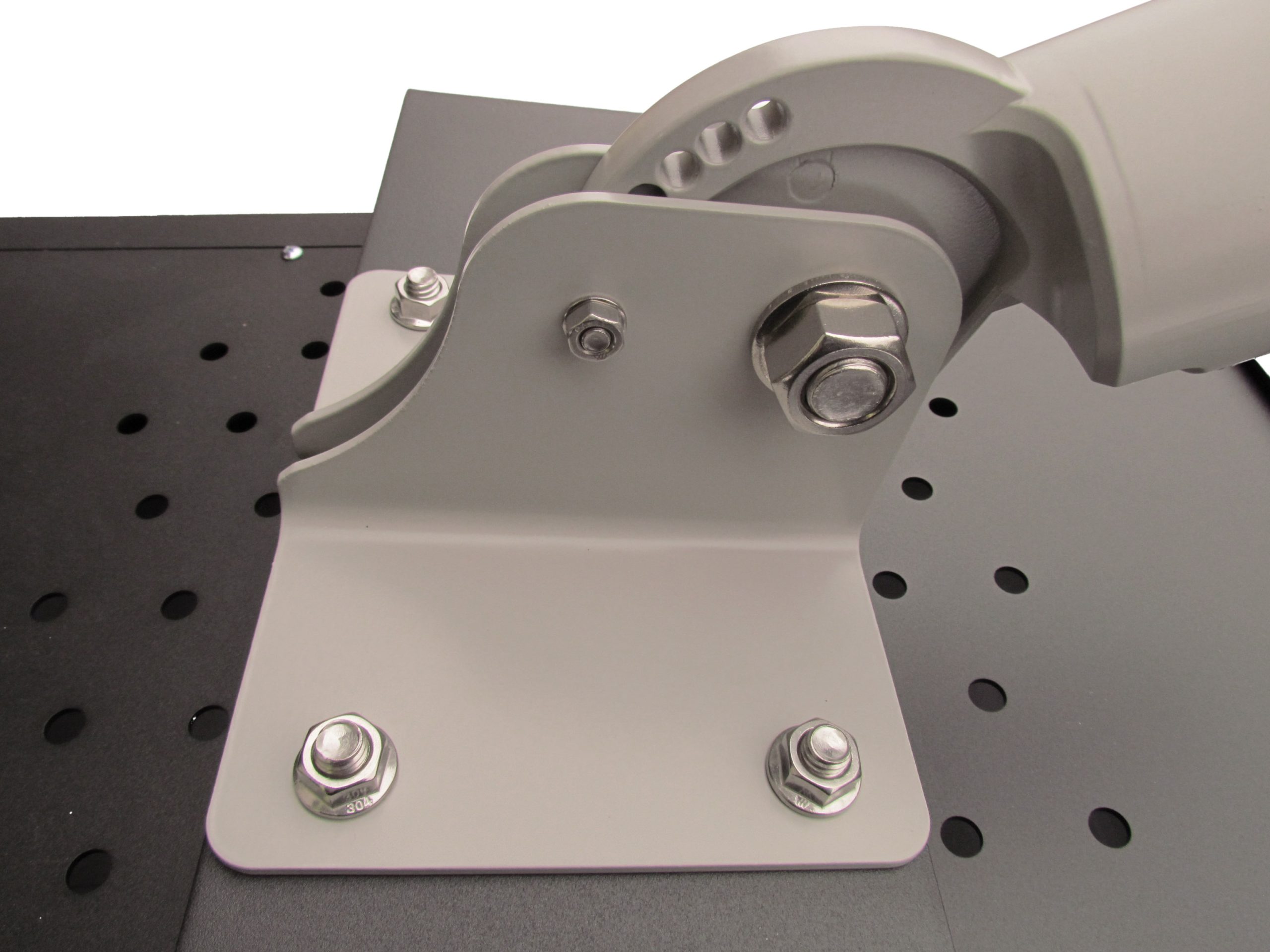

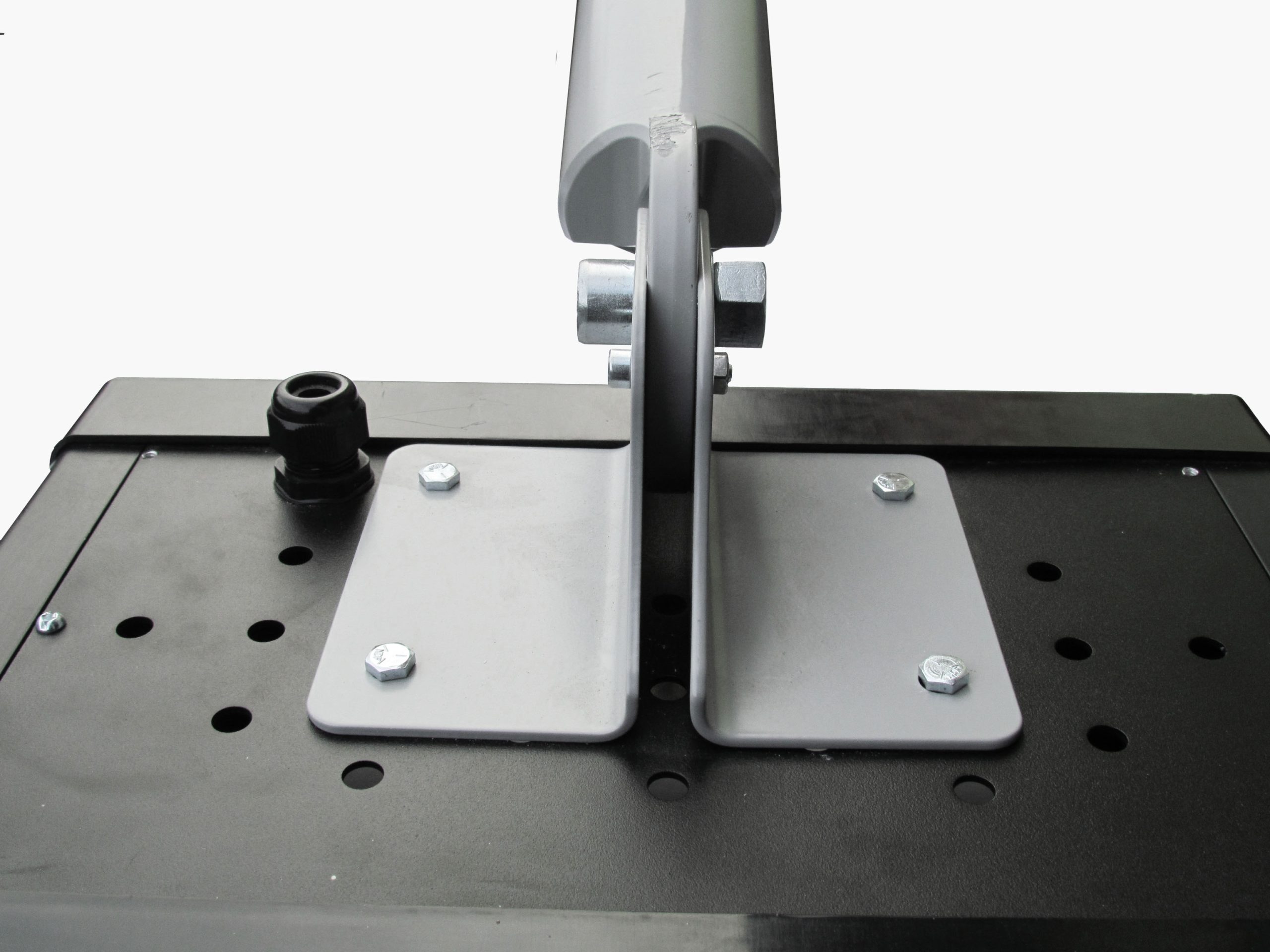

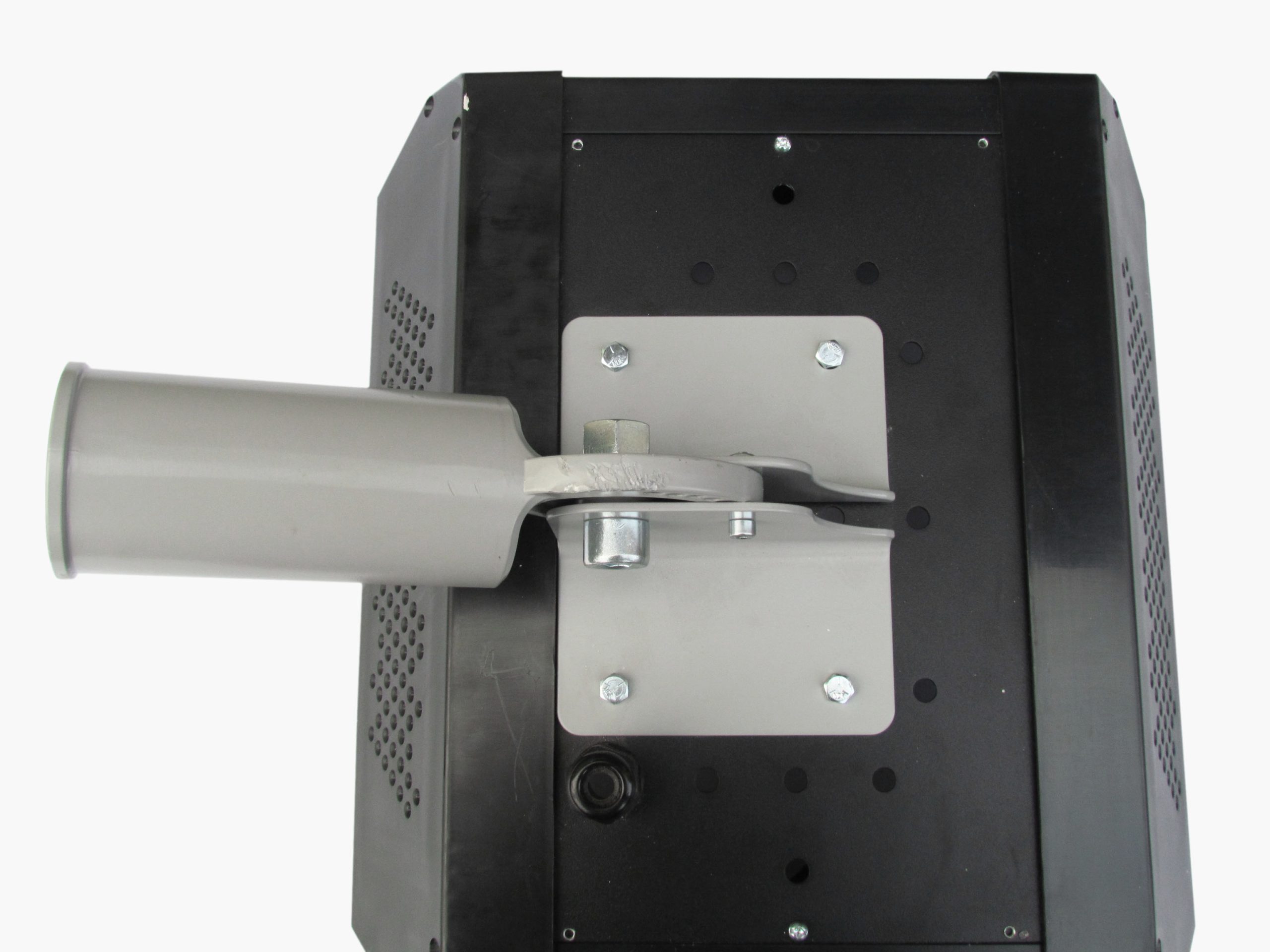

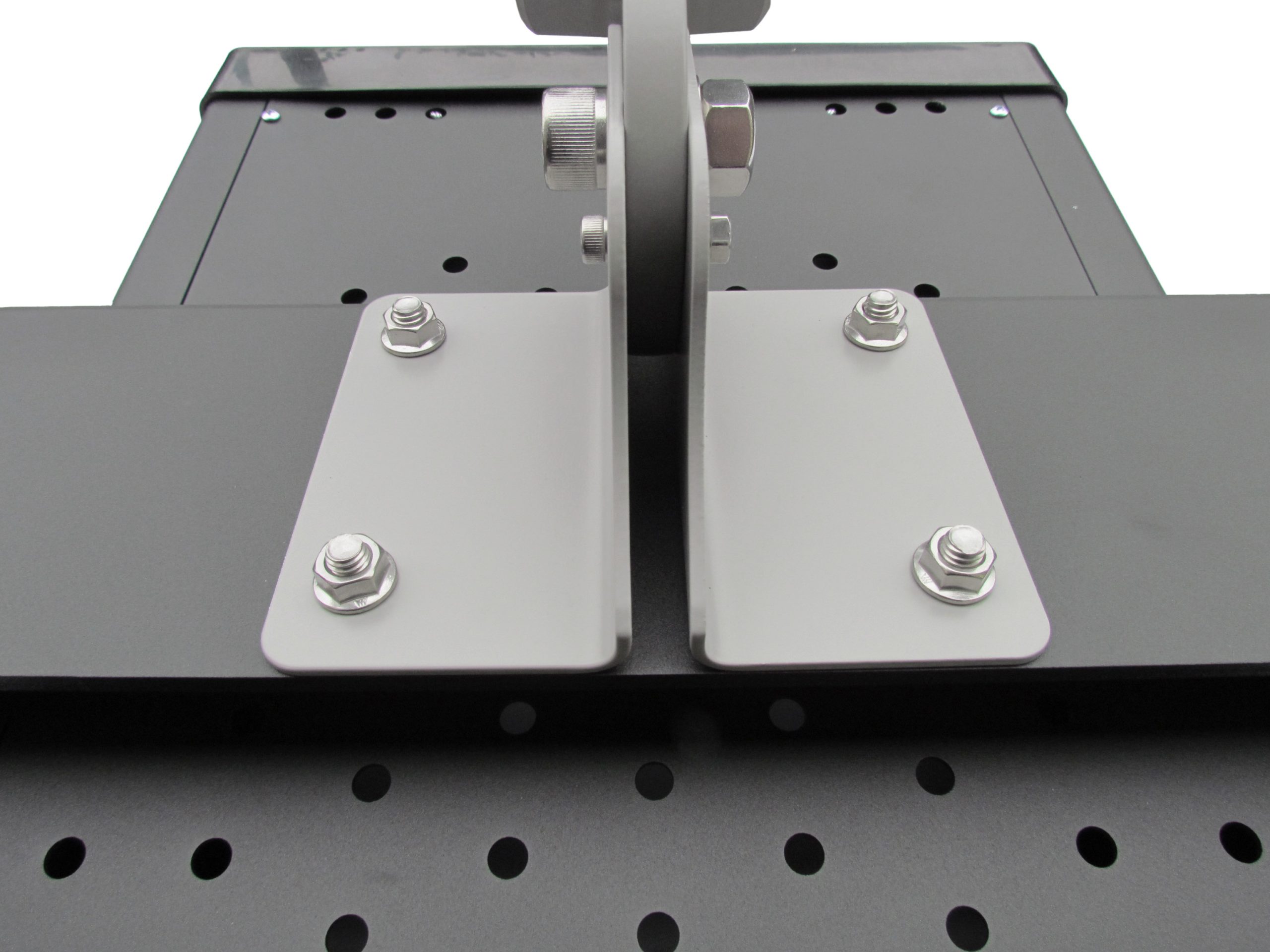

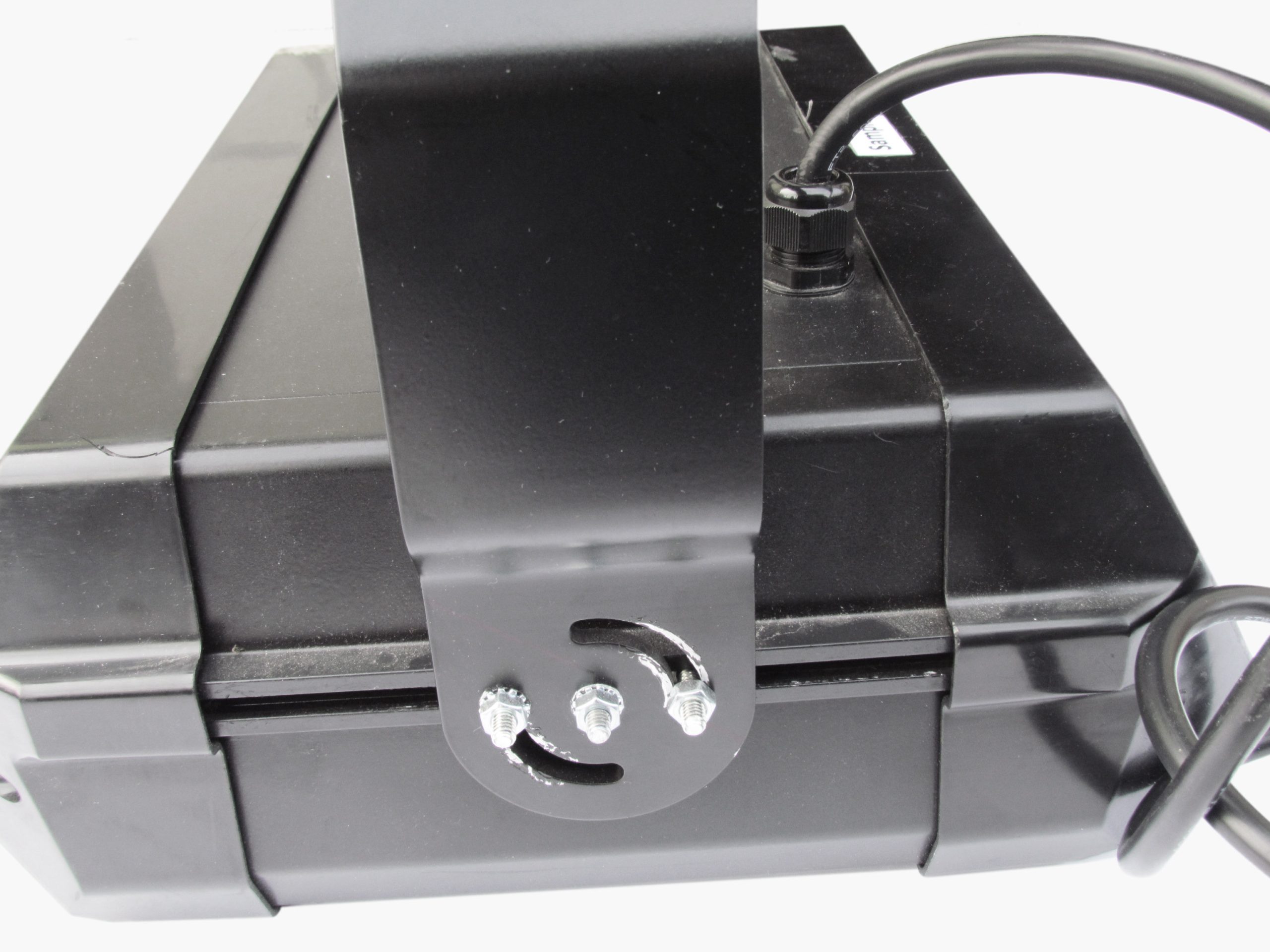

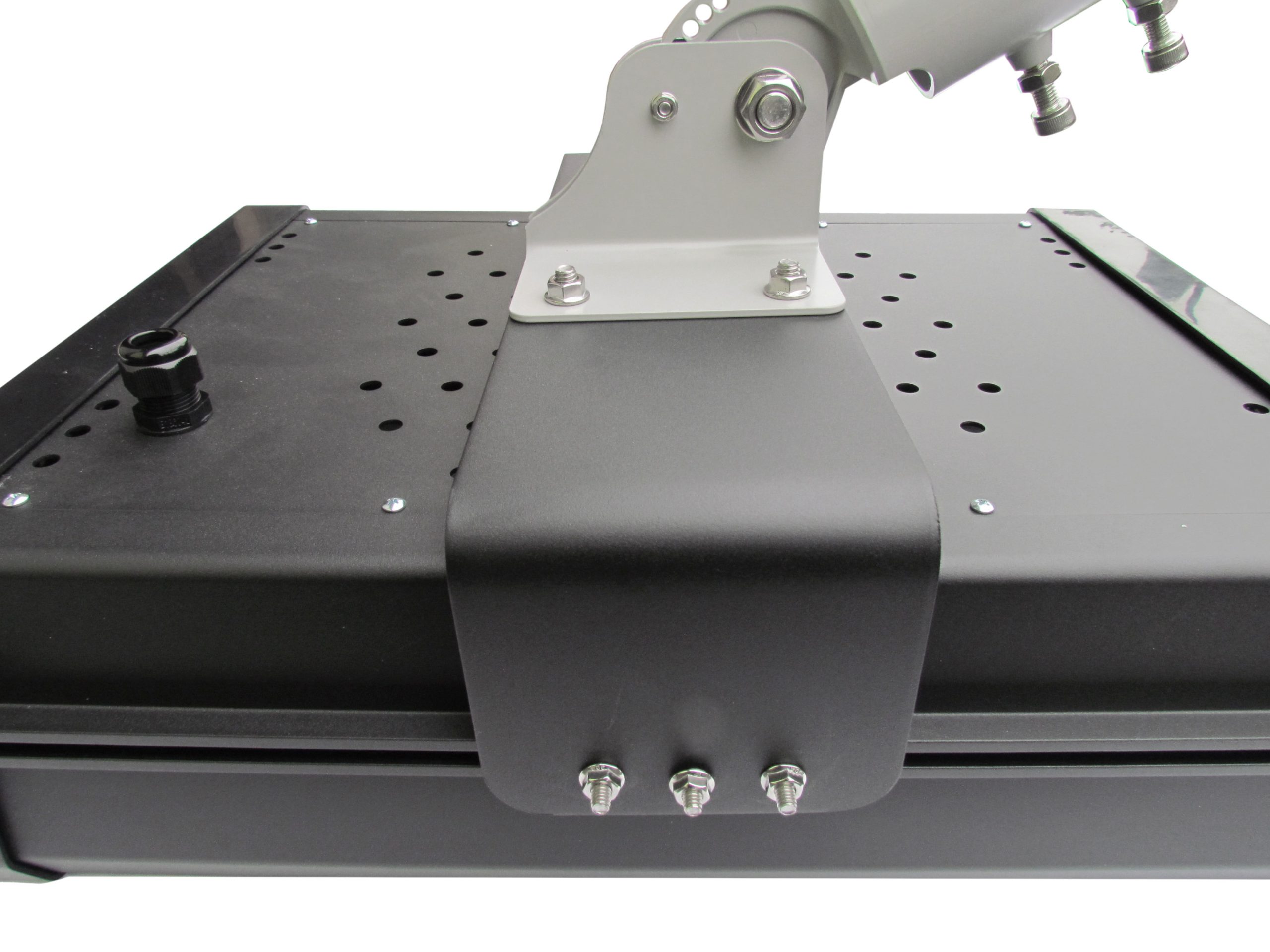

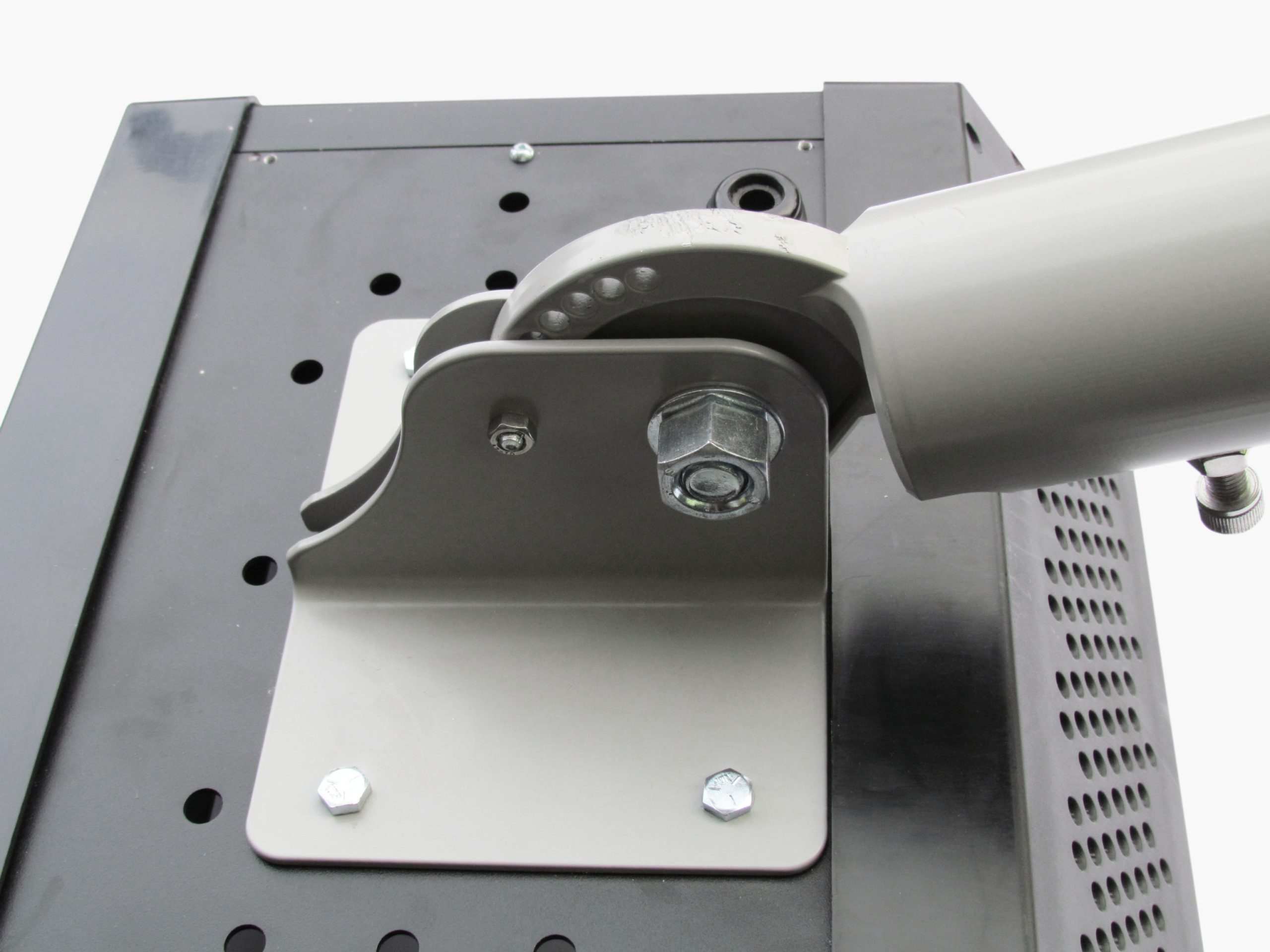

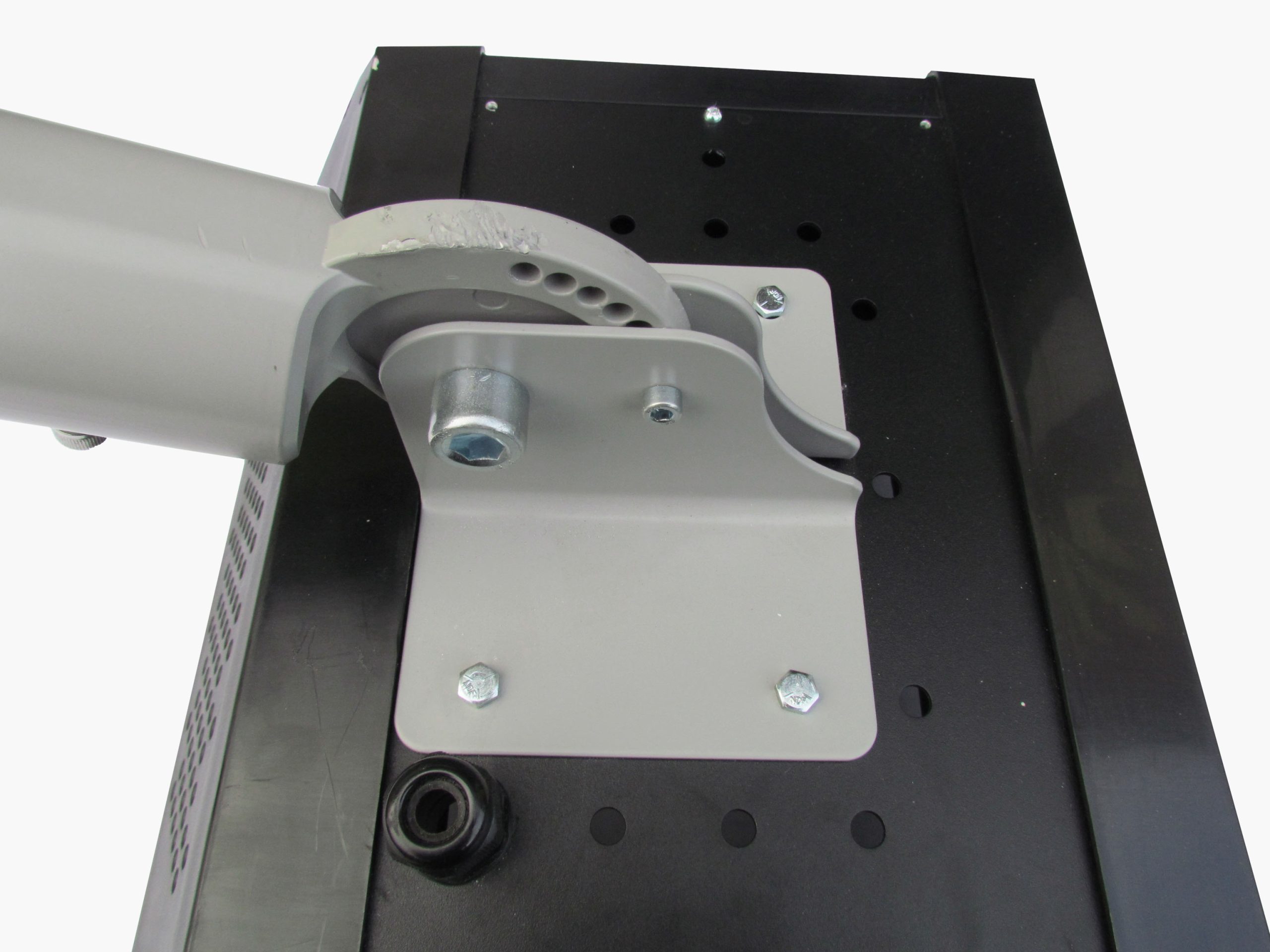

  • Installation: Surface/Pendant mounting utilizing a standard yoke-style bracket. Pole mounting for 60 mm (2.375 in) slip-fit poles. Suspension installation using a supplied galvanized aircraft cable kit.
  • Input Voltage: 120-277/347/480 VAC (50/60 Hz)
  • Operating Temperature: -40˚C to +55C
  • Standard Warranty: 5 year

CONFIGURATION

  • 0/1-10V Dimming
  • Photocell
  • Surge Protection

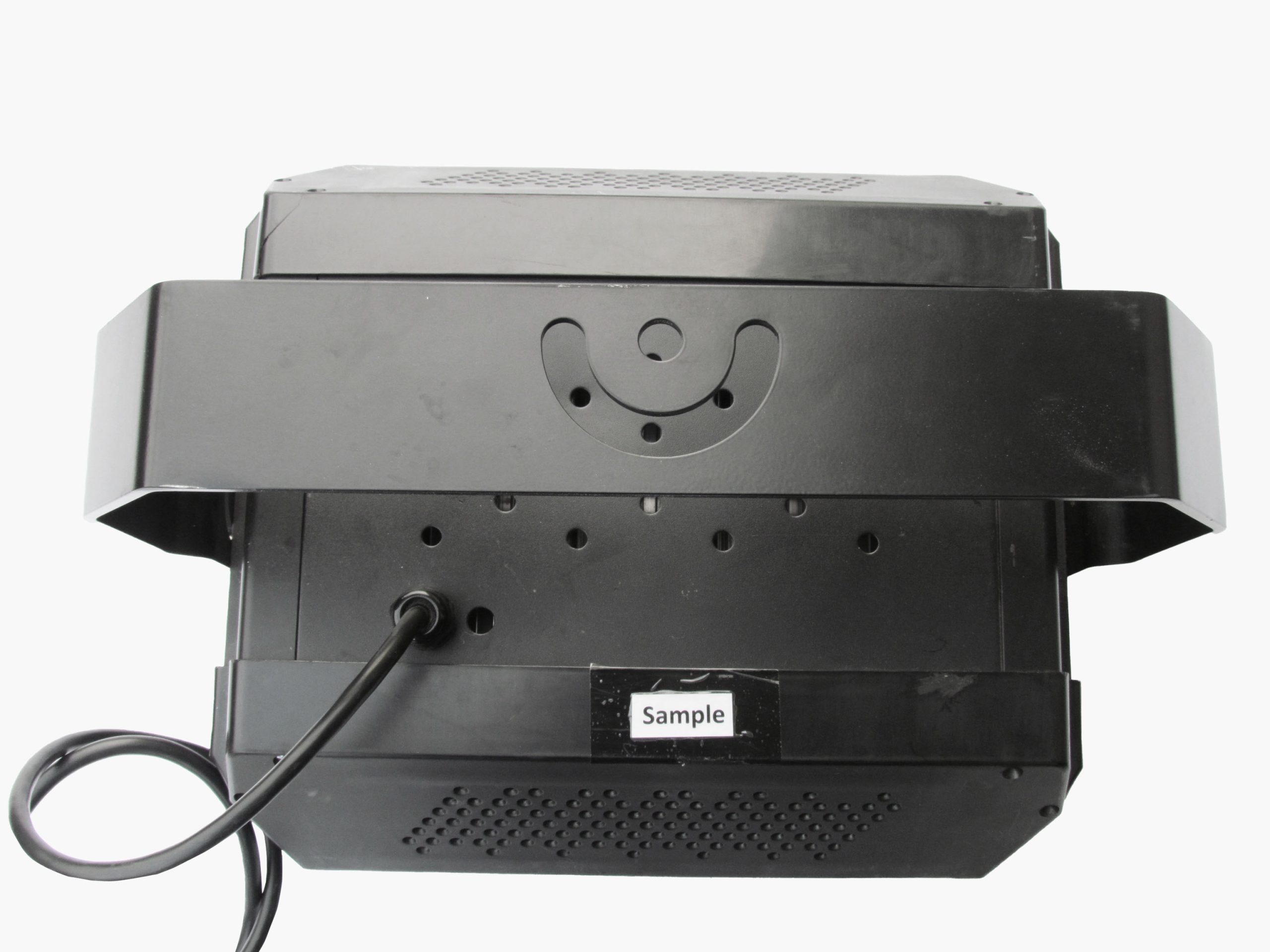

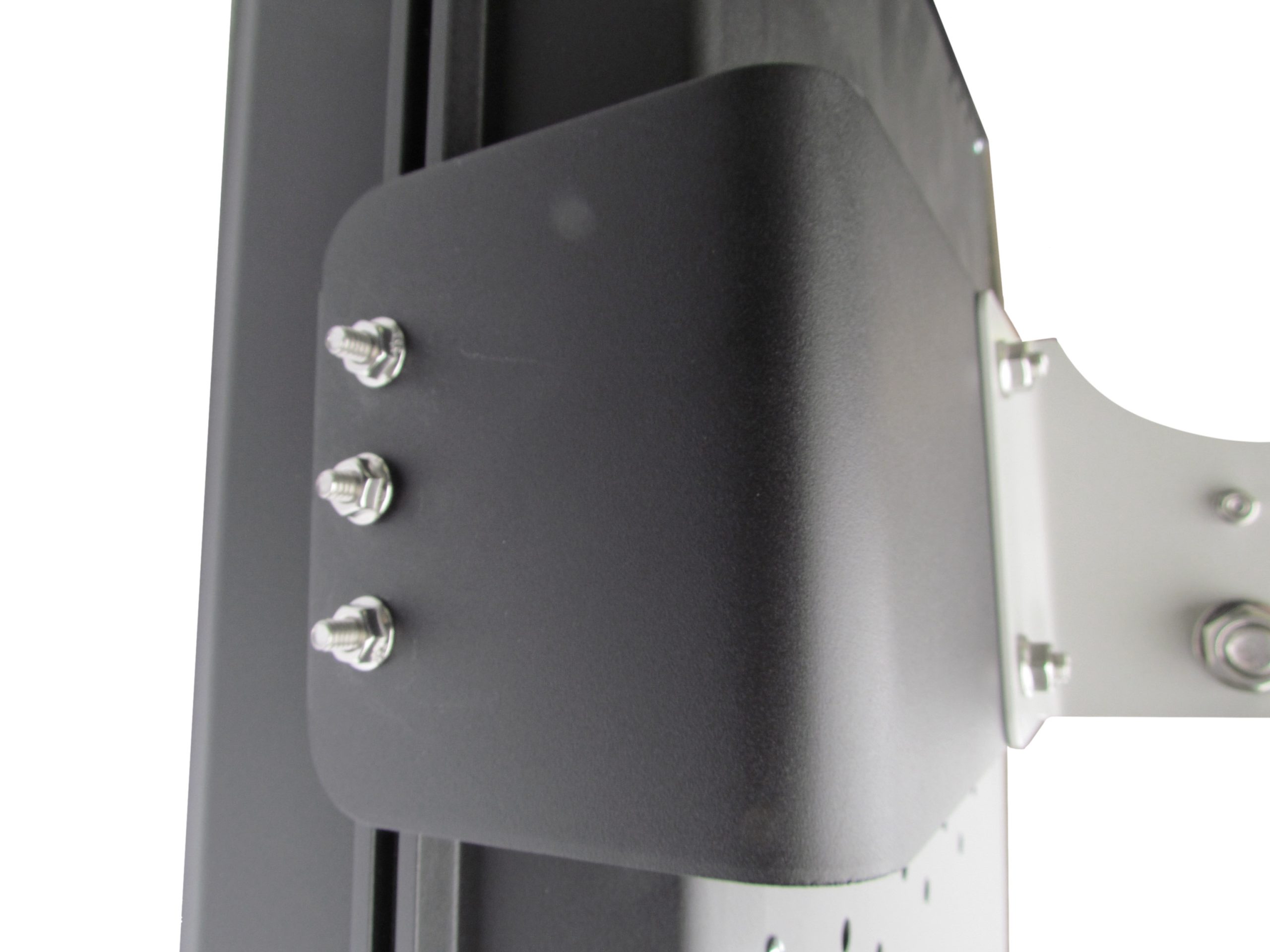

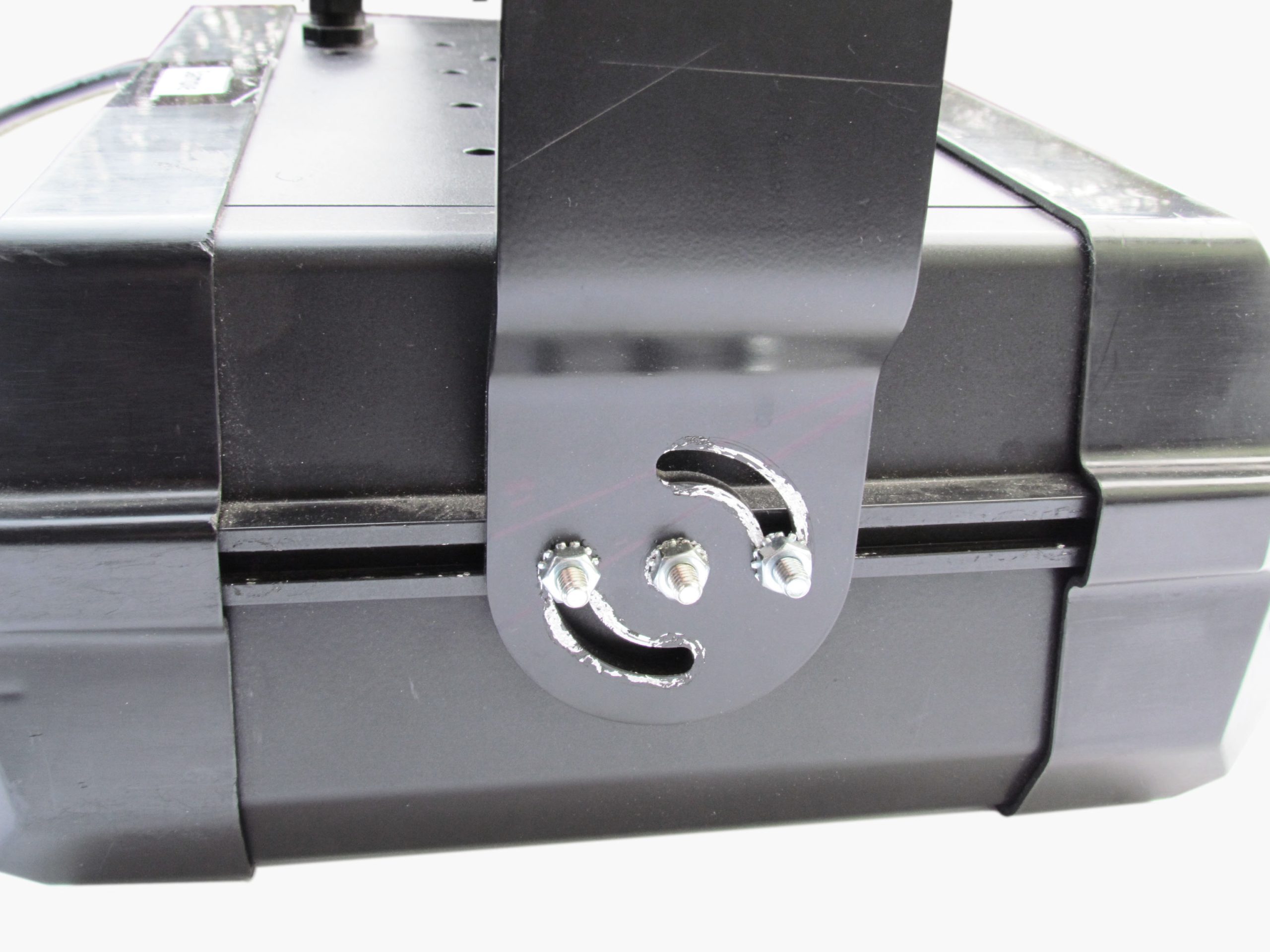

  • Yoke-mount

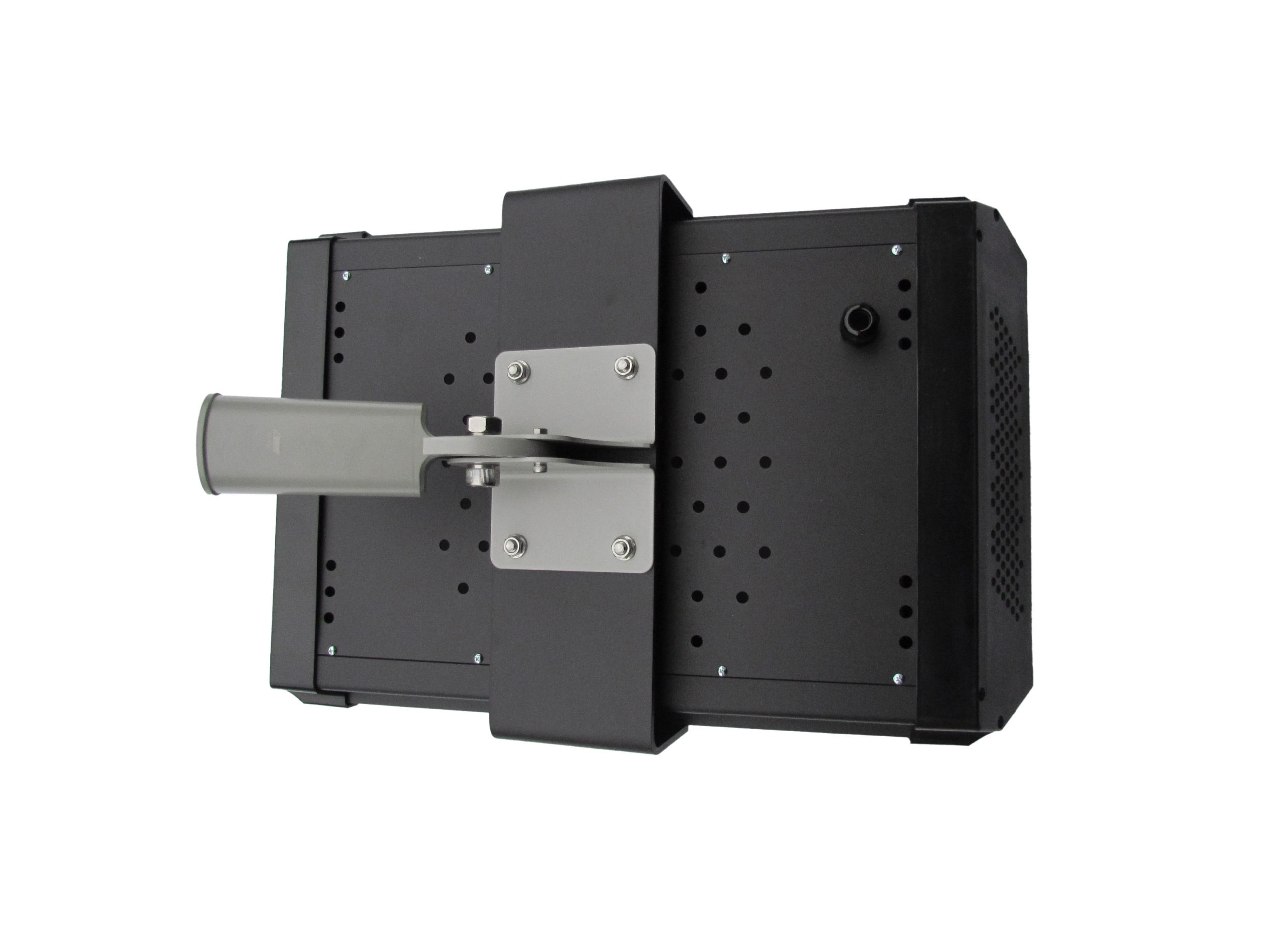

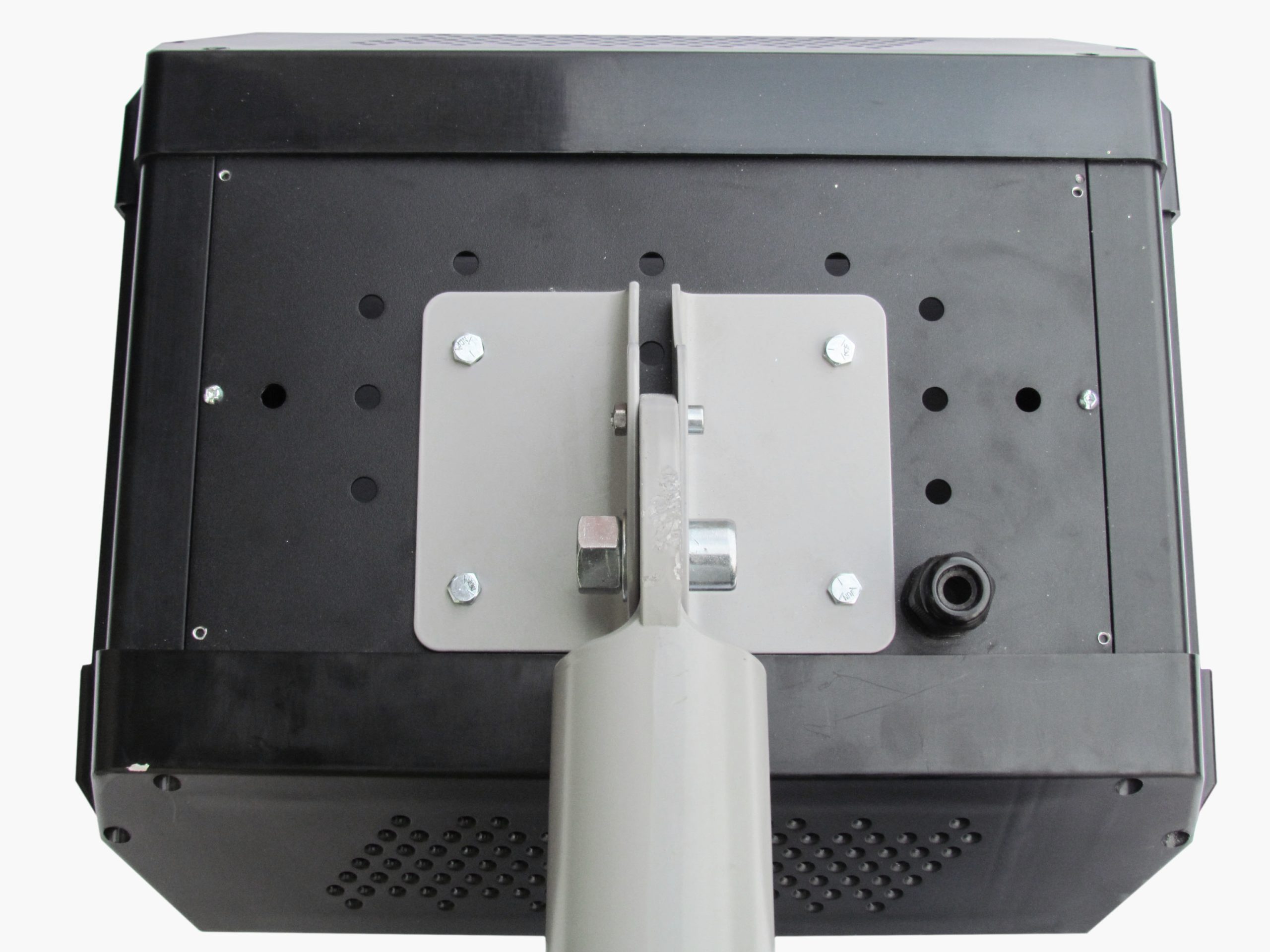

  • Pole-mount
  • Pendant Suspension
  • Cable Suspension
