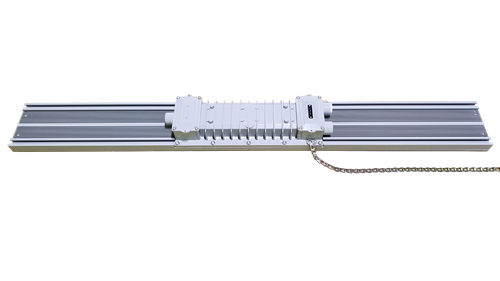

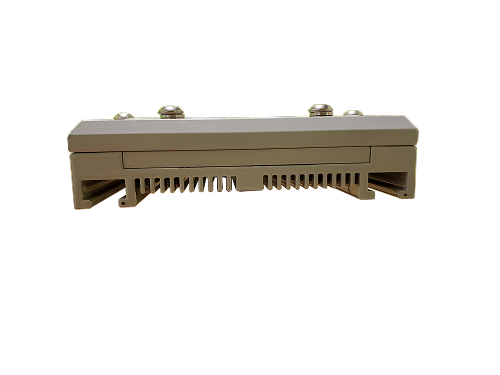

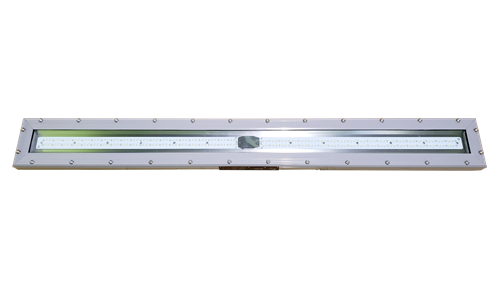

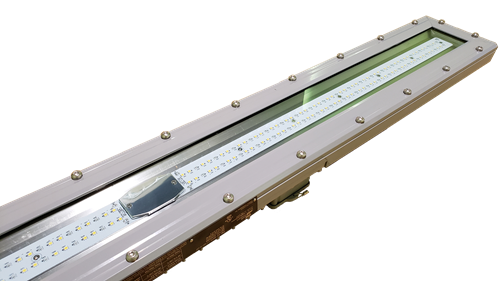

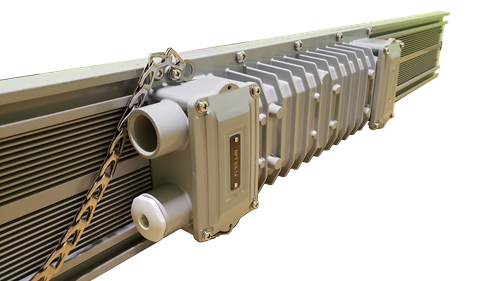

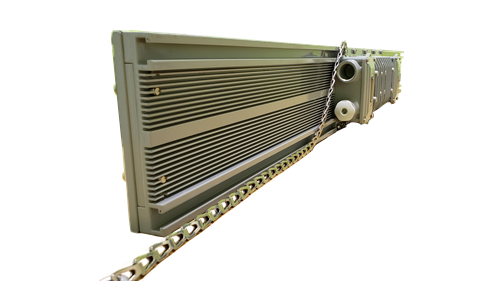

LED Hazardous Light Falcon Series
LED Hazardous Light Falcon Series - Image 2
LED Hazardous Light Falcon Series - Image 3
LED Hazardous Light Falcon Series - Image 4
LED Hazardous Light Falcon Series - Image 5
LED Hazardous Light Falcon Series - Image 6

LED Hazardous Light Falcon Series

GET QUOTE

FAL-EX series is a Class l, Division 2 explosion proof fixture with IP66 rating for harsh environments. This fixture thrives in tough conditions with minimal lumen depreciation and is resistant to impact and vibrations.

Use:
industrial

Application:
Refinery factory,Oil and gas loading dock,Saw and Pulp mill,Paint manufacture,Smelting plant,Mining,Ocean platform,Chemical plant,Hazardous environments

Description

The FAL-EX series is a Class l, Division 2 explosion proof fixture that is IP66 rated for harsh environments with highly resistant to impact and vibrations. The durable aluminum housing acts as a heat sink allowing the fixture to be installed in even the toughest conditions with minimal lumen depreciation. Multiple size configurations make this fixture perfect for all applications.

SPEC SHEET

Variations SKU NUMBERDelivered Lumens (lm)Wattage (W)Efficacy (lm/W)Input VoltageSize (cm)Weight (KG)
FAL-EX-00404,91436137100-277V60X13.6X12.46.4
FAL-EX-00506,55248137100-277V60X13.6X12.46.4
FAL-EX-00607,64456137100-277V60X13.6X12.46.4
FAL-EX-T0404,91436137100-277V120X13.6X12.411.0
FAL-EX-T0506,55248137100-277V120X13.6X12.411.0
FAL-EX-T0607,64456137100-277V120X13.6X12.411.0
FAL-EX-00729,82872137100-277V120X13.6X12.411.0
FAL-EX-010013,650100137100-277V120X13.6X12.411.0
FAL-EX-S0364,55436137100-277V60X13.6X12.46.4
FAL-EX-S0486,07248137100-277V60X13.6X12.46.4

FAL-EX-XXXX Specifications:

  • Listing: UL US-Canada Certified. Suitable for Wet Location. IP66 Rating Class I Division 2 Groups A, B, C, D, Class II Division 2, Groups F, G Class III. (Tested standards: UL844, UL1598/1598(A). CSA C22.2 No. 250.0/137. RoHS compliant.)
  • Optics: 120˚
  • Available CRI: 70, 80 (only for 3000K CCT)
  • Color Temperature (CCT): 3000-5000K
  • Input Line Voltage: 100-277 VAC, 50/60 Hz
  • Ambient Temperature: -40˚C to 45˚C
  • Warranty: 5 years
  • Standard Dimensions: 600-1200mm x 136mm x 124mm [23.6-47.2” x 5.4” x 4.9”]
  • Standard Weight: 6.4 kg – 11 kg [14.1 lb. – 24.3 lb.]
  • Lens: Shock and vibration resistant tempered glass for reliability. Diffused lens for glare reduction available.
  • Construction: Powder-coated copper free aluminum housing. Suitable for marine applications.
  • Major Feature: IP66 dust/water protection. High efficiency and impact resistance (10J)
  • Installation: Surface/wall, ceiling, pole, suspension, and clamp mount

SPEC SHEET DOWNLOAD



IES

IES Download

Installation guide

Installation guide Download
