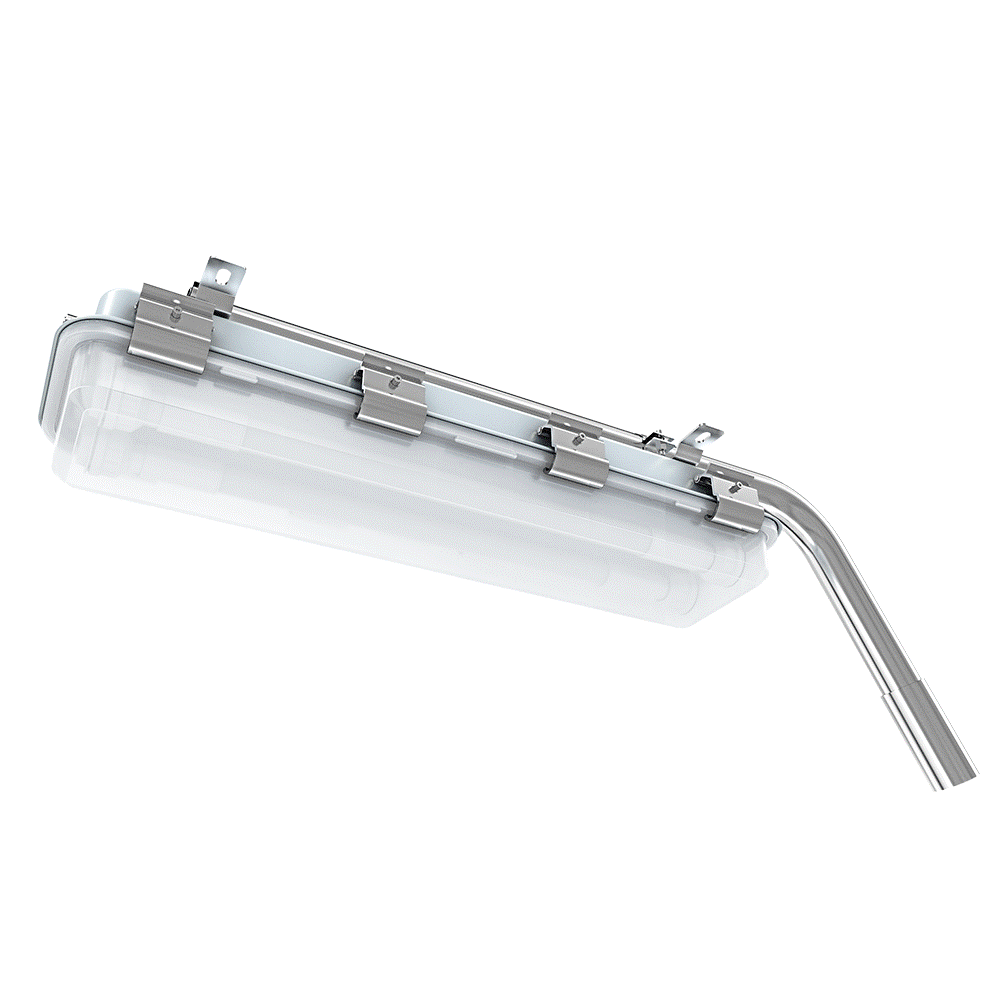

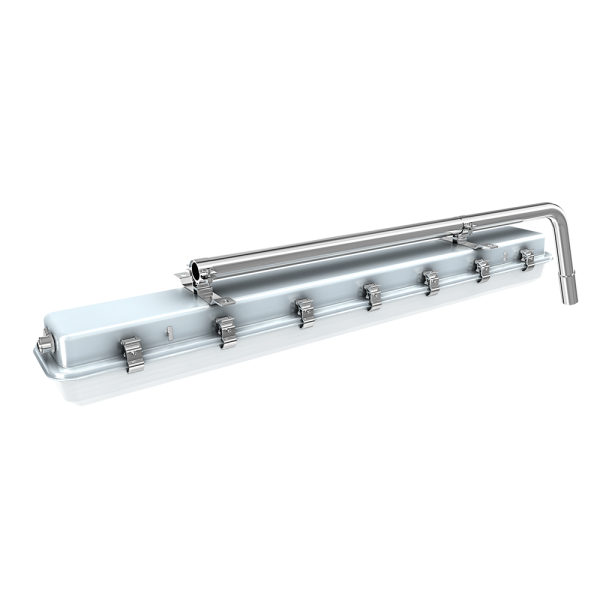

LED Hazardous Light Marici Series

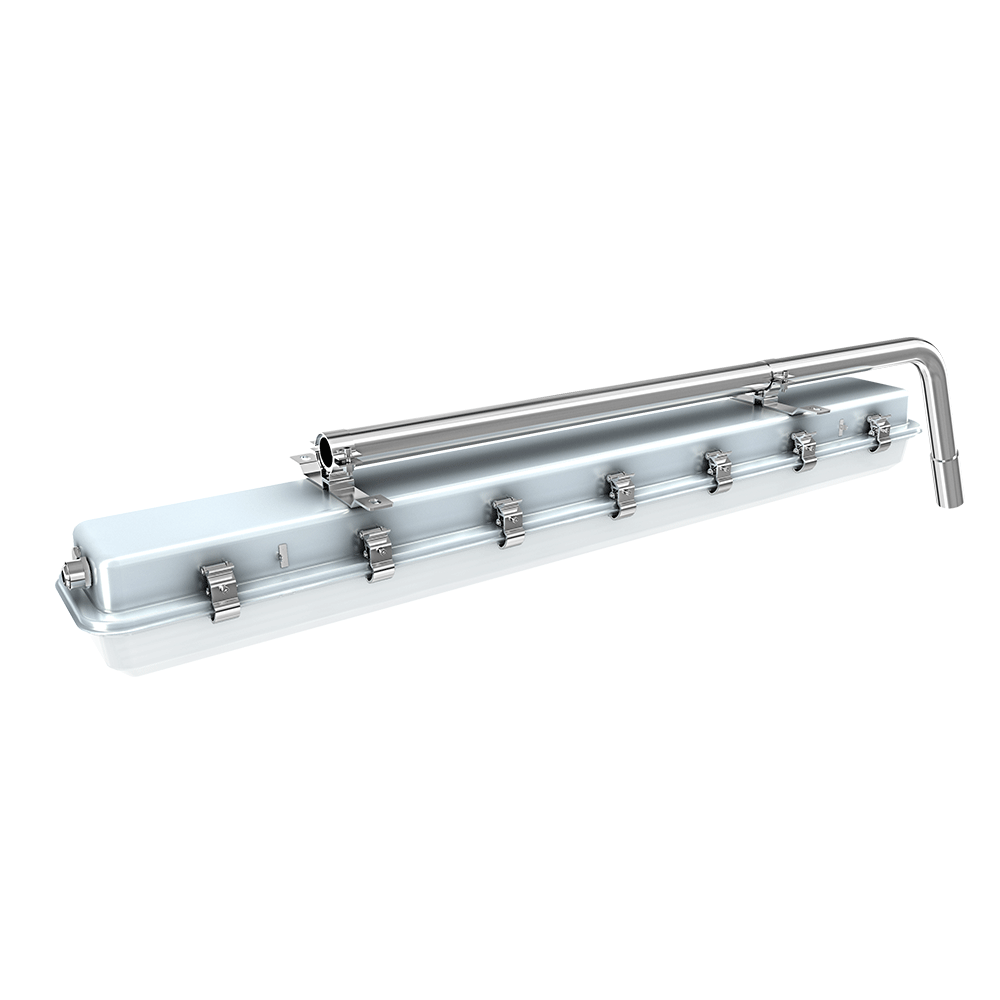

LED Hazardous Light Marici Series - Image 2

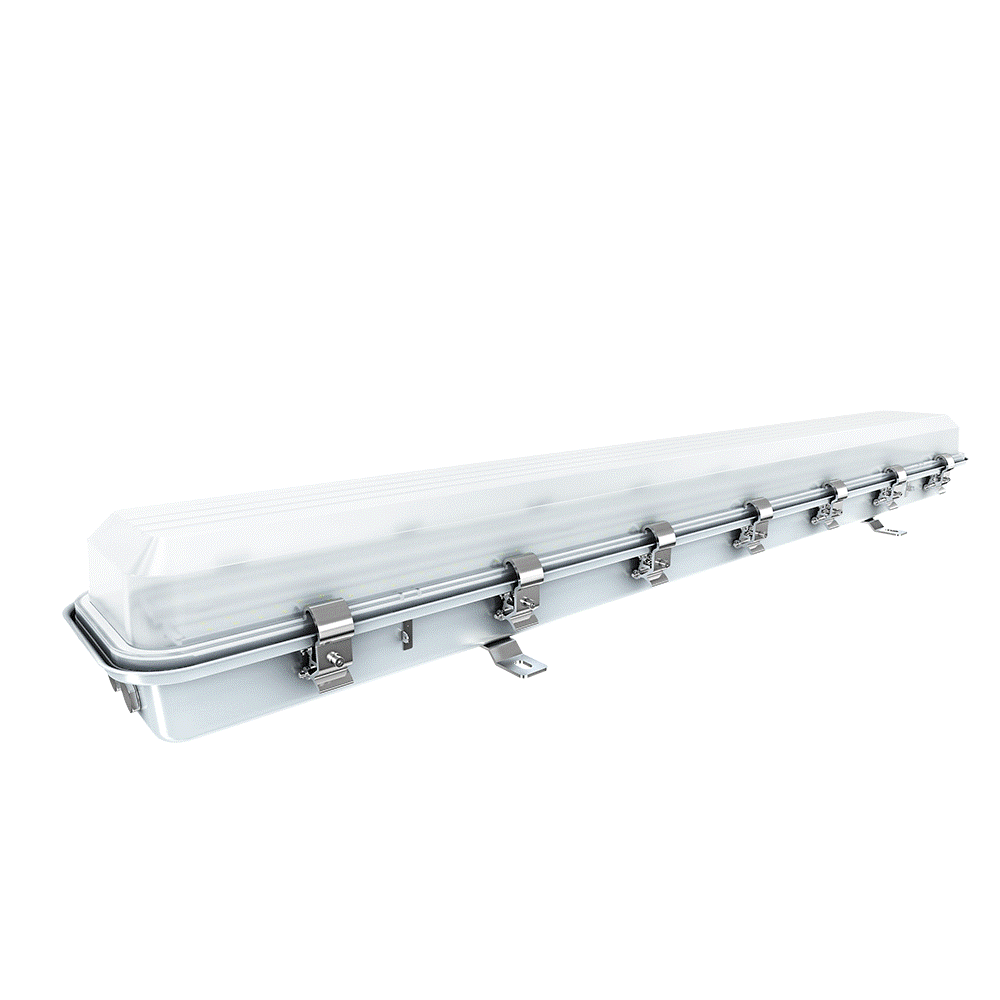

LED Hazardous Light Marici Series - Image 3

LED Hazardous Light Marici Series

GET QUOTE

Explosion proof lighting is suitable for industrial fields and hazardous environments with a working temperature between -40°C – +60°C.

Use: industrial

Application: Refinery factory,Oil and gas loading dock,Saw and Pulp mill,Paint manufacture,Smelting plant,Mining,Ocean platform,Chemical plant,Hazardous environments

Description

The MAR-EX series linear vapor tight is designed for use in hazardous locations that feature the presence of flammable gasses, vapors, or liquids during normal facility operations, and can sustain operating ambient of -40°C to +50°C. This fixture is made with UV stabilized, impact-resistant fiberglass reinforced polycarbonate lens, and is ideal for retrofit of existing HPS/MH and offers higher efficiency for energy savings, lower maintenance costs and quicker paybacks. The optional battery backup system provides a minimum of 90 minutes operation after AC power is lost during an emergency. It operates with 120 or 277V dual voltage.

SPEC SHEET

Variations SKU NUMBERDelivered Lumens (lm)Wattage (W)Efficacy (lm/W)Input VoltageSize (cm)Weight (KG)
MAR-EX-00202,95922135100-277V70x22x135.2
MAR-EX-00304,01230134100-277V70x22x135.2
MAR-EX-00405,06740127100-277V130x33x159.0
MAR-EX-00507,02450141100-277V130x33x159.0
MAR-EX-00608,38160140100-277V130x33x159.0

MAR-EX-XXXX Specification

  • Certifications: UL1598. UL8750—LED Luminaire Certification
  • UL924—Emergency Lighting Equipment
  • UL844—Hazardous Location Certification—
  • Class I Division 2 Groups ABCD, Class II Division 2 Groups FG, Class III
  • IK10 Impact Rating, IP66 Ingress Rating, 1000-hr Salt Spray
  • T5/T6 Temperature ratings
  • DLC 5.1
  • Colour Rendering Index: Ra > 80
  • Color Temperature (CCT): 2700K, 4000K, 5000K
  • Color Temperature (CCT): 3000K, 4000K, 5000K
  • Standard Operating Temperature: -40°C to +50C
  • Electrical: Input: 120-277 Vac, 50/60 Hz, Power Factor: >0.90, THD: < 6%, Surge: 4 kV
  • Construction: SUS 304 stainless steel housing and fiberglass reinforced polycarbonate lens material. Cable Entry allowable for 4x NPT 3/4-in (Emergency lighting versions: 3 x NPT 3/4-in)
  • LED: High-efficiency surface mount LED technology.
  • Lens & Optics: Fiberglass-reinforced polycarbonate lens material with clear or diffuse optical properties. Standard 120° FHWM beam optics
  • Installation: Ceiling, Suspension or Pole mount
  • Feature: 0-10V Dimming, easy serviceability and maintenance, emergency backup battery configurations with push-to-test button and charging indicators. Minimum 90 minutes duration.
  • Reported TM-21-11 LED Lumen Maintenance: L70 (70% light output) > 50,000 hours
  • Warranty: 5 years for Fixture, 3 years for Battery Backup

SPEC SHEET DOWNLOAD



IES

IES Download

Installation guide

Installation guide Download
