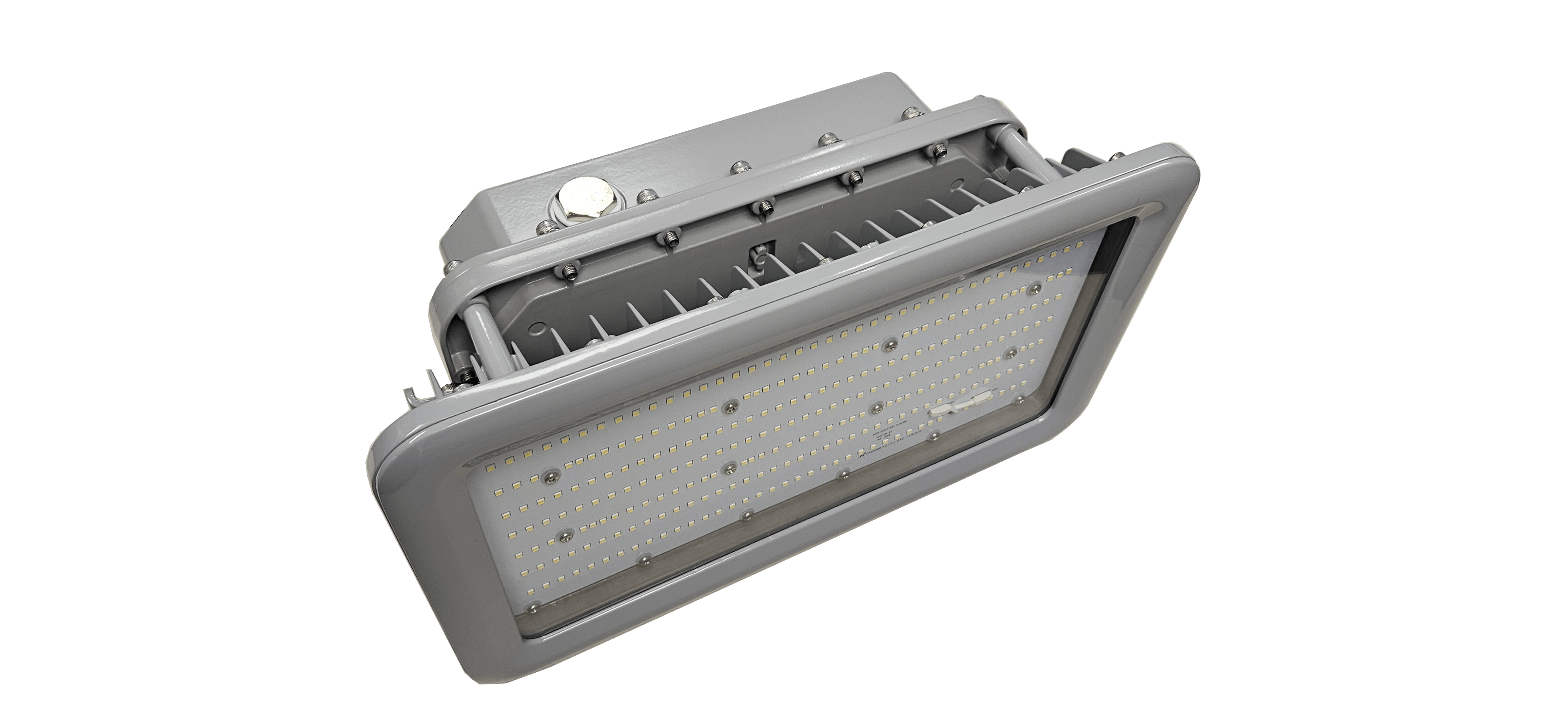

LED Hazardous Light PAZ Series

The PAZ-EX series is perfect for industries with high humidity, dust, temperature locations such as oil and gas industry, chemical industry, metal treatment facilities, ocean, marine, and aerospace field facilities.

Use: industrial

Application: Refinery factory,Oil and gas loading dock,Saw and Pulp mill,Paint manufacture,Smelting plant,Mining,Ocean platform,Chemical plant,Hazardous environments

Description

The PAZ-EX series is perfect for industries with high humidity, high dust, or high temperature locations such as oil and gas industry, chemical industry, metal treatment facilities, ocean, marine, and aerospace field facilities. This robust fixture is constructed with a copper-free aluminum housing with marine-rated powder coat finish, shatterproof tempered glass or polycarbonate lens and stainless-steel mounting hardware and brackets. It includes SMT LEDs and high-quality Meanwell drivers. This fixture has plenty of mounting options and accessories available for different mounting surfaces such as ceiling mount, wall mount, hook mounting, pole mounting, stanchion mounting, and arm mounting. Inquire separately about various mounting accessories and availability.

SPEC SHEET

Variations SKU NUMBERDelivered Lumens (lm)Wattage (W)Efficacy (lm/W)Input VoltageSize (cm)Weight (KG)
PAZ-EX-00405,20040130100-277V/ 347-480V25X16X174.2
PAZ-EX-00607,80060130100-277V/ 347-480V25X16X174.2
PAZ-EX-008010,40080130100-277V/ 347-480V32X24X167.0
PAZ-EX-010014,000100140100-277V/ 347-480V32X24X167.0
PAZ-EX-015021,000150140100-277V/ 347-480V38X23X198.3
PAZ-EX-020028,000200140100-277V/ 347-480V42X30X2315.1

PAZ-EX-XXXX Specifications

  • Listing: ETL US-Canada Certified. Suitable for Wet Location. ATEX certified. IP66 Rated for Marine Applications. (Applicable standards: UL844, UL1598/1598A.
  • Class I Division 2 Group A, B, C, D; T3
  • Class II, Division 1, Groups E, F, G; T3
  • Class II, Division 2, Groups F, G; T3
  • Class III
  • Optics: 40˚, 60˚, 90˚, 120˚
  • Available CRI: 80
  • Color Temperature (CCT): 2700-6500K
  • Warranty: 5 Years
  • Standard Operating Temperature: -40°C to +55°C
  • Lens: Shock and vibration resistant tempered glass for reliability.
  • Construction: Powder-coated copper free aluminum housing. Suitable for marine applications. Stainless steel mounting brackets.
  • Features & Options: IP66 dust/water protection. Serviceability throughout lifetime, 0-10V dimming.
  • Installation: Single-point suspension, single-point pendant/pipe mount, surface mount via bracket, wall/pole mount via arm mounting kit.
  • Input Voltage: 120-277Vac (50/60Hz) 200-480Vac (50/60Hz) (Not available for 0040/0060 models) DC 12-48V
