Marici LED Linear LN Series

Incorporating a custom-designed aluminum extrusions around multifunctional sensors, universal voltage drivers, and industry-leading LED chips, these fixtures deliver extreme illuminations at low input power rating.

Use:
• industrial
• commercial

Application: Office, School, Construction, Recreation Facility, Warehouse, Factory,Supermarket, Parkade, Retail, Residential

Description

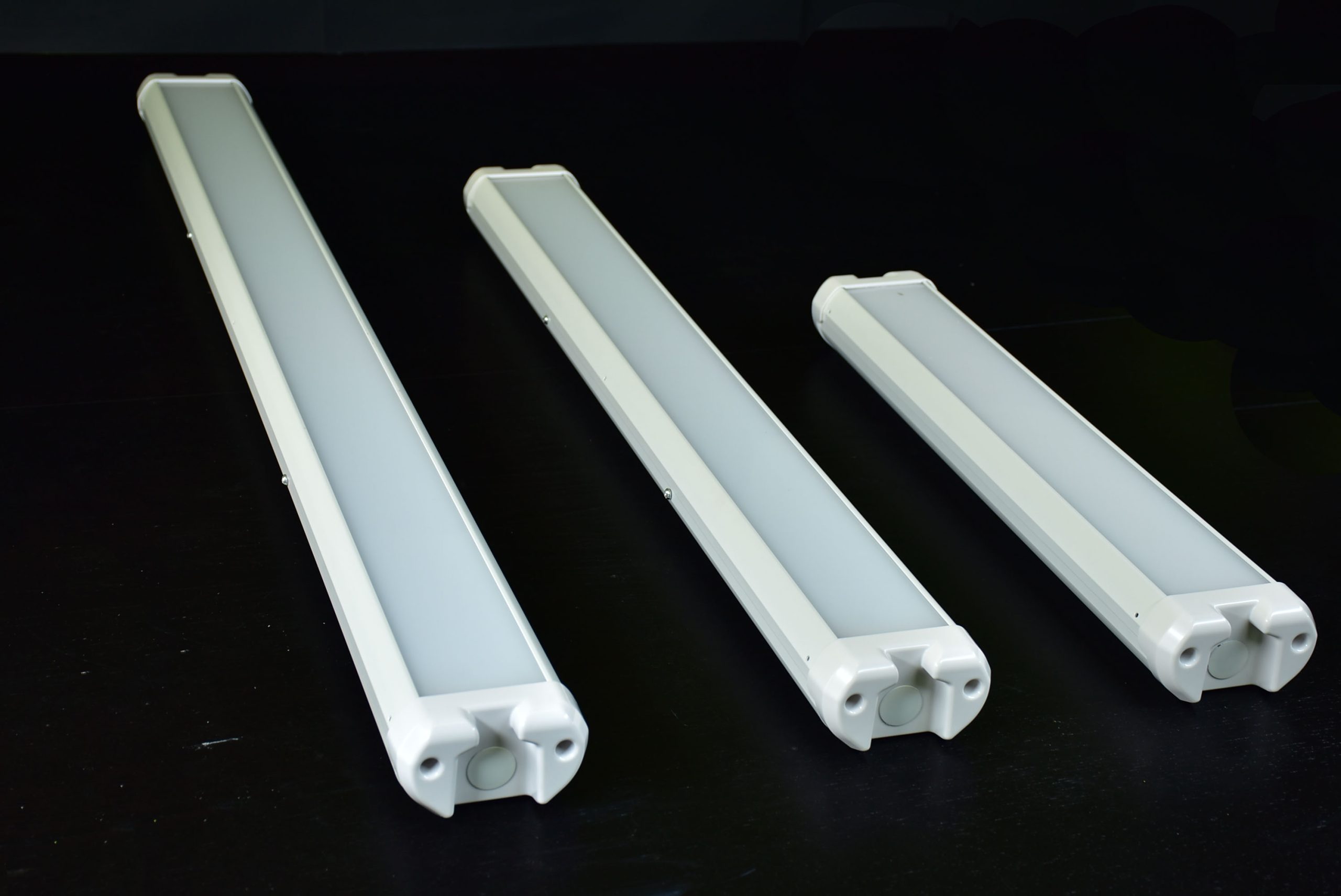

A Direct Linear Ambient designed for your budget, installation ease, and peace of mind. The SLD-LN Series from Lumingen was developed through our extensive experience in the high-performance lighting market. Incorporating a custom-designed aluminum extrusions around multifunctional sensors, universal voltage drivers, and industry-leading LED chips, these fixtures deliver extremely illumination at an incredibly low input power rating. Its sleek and architecturally pleasing design is equally at home in commercial or industrial settings. This series is available at nominal lengths of 2-ft, 3-ft, and 4-ft and can be daisy-chain/ linkable for simple installation. Made almost entirely of light-weight aluminum to ensure a robust fixture with exceptional reliability.

SPEC SHEET

Variations SKU NUMBERDelivered Lumens (lm)Wattage (W)Efficacy (lm/W)Input VoltageSize (cm)Weight (KG)
SLD-LN-00203,22620163100-277V/ 347V/ 480V59X10X61.4
SLD-LN-00406,11639157100-277V/ 347V/ 480V59X10X61.4
SLD-LN-00609,71860162100-277V/ 347V/ 480V116X10X63.0
SLD-LN-010015,541100155100-277V/ 347V/ 480V116X10X63.5
SLD-LN-012017,109112153100-277V/ 347V/ 480V116X10X63.5


SLD-LN-XXXX Specifications

  • Listing: CSA US-Canada Certified for Dry and Damp Locations. DLC QPL. BC Hydro e.Catalog.
  • LED: Industry-leading Cree LEDs for mid-range lighting applications. Engineered for superior efficiency allowing for an end-product efficiency up to 160 lm/W.
  • Optics: Standard 120° beam angle. High-transmission impact resistant PC diffuser. Customizable diffuser material: Clear, Frosted or Prismatic.
  • Available CRI: 80, 90
  • Colour Temperature (CCT): 2700K, 4000K, 5000K, 6500 K
  • Colour Temperature (CCT): 2700-6500 K
  • Reported (and Projected) TM-21 LED Light Maintenance:
    • L90(90% light output): > 53,000 hours (Projected >53,000 hours)
    • L70(70% light output): > 102,000 hours (Projected >171,350 hours)
  • Operating Temperature: -40˚C to +50̊C
  • Warranty: 5 years
  • Electrical: Input: 120-277/347 VAC 50/60 Hz
    • Power Factor: > 0.90
    • THD: < 20%
    • Surge: 3 kV

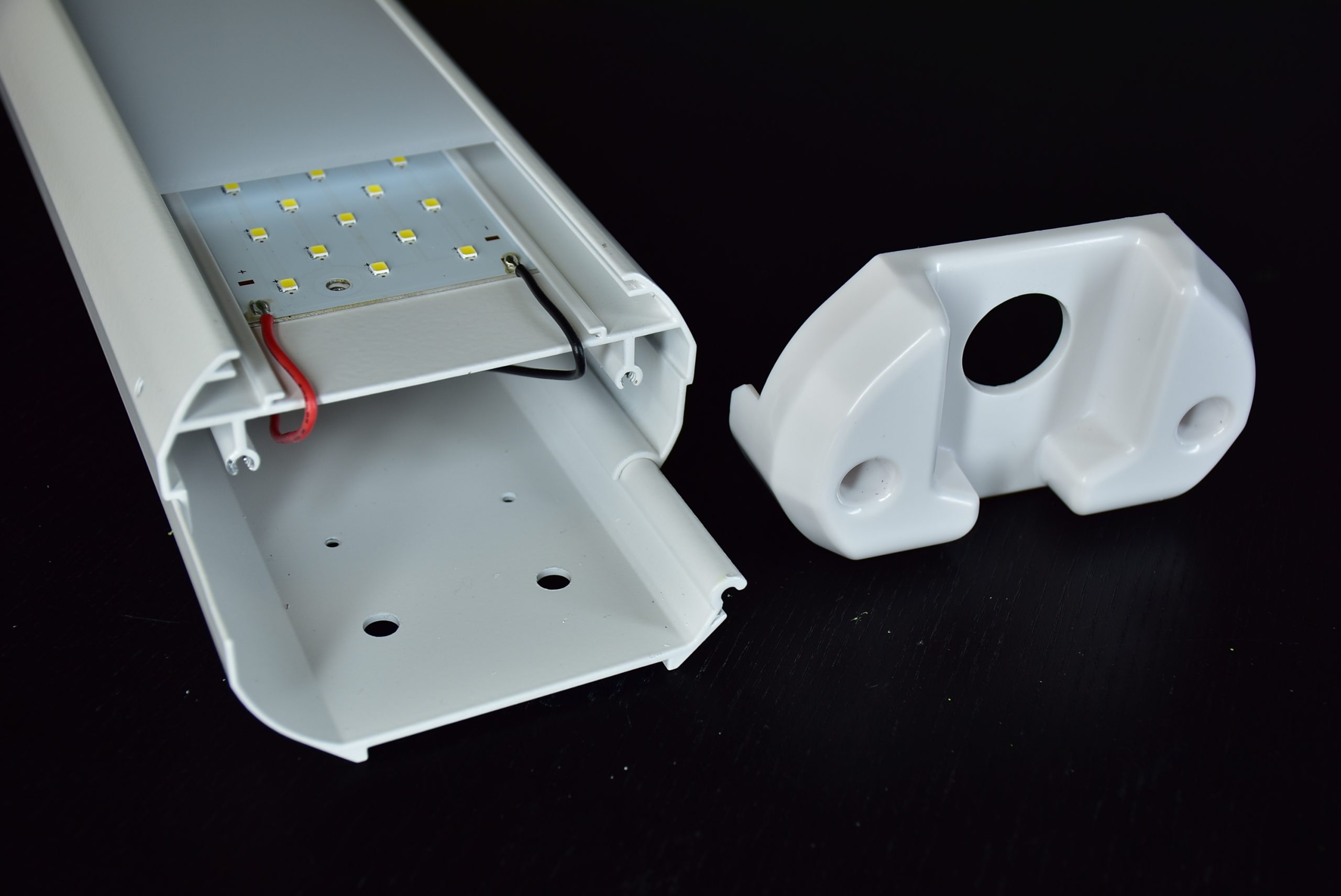

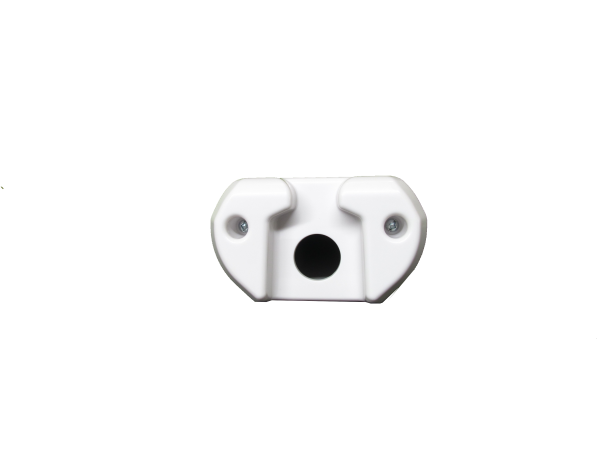

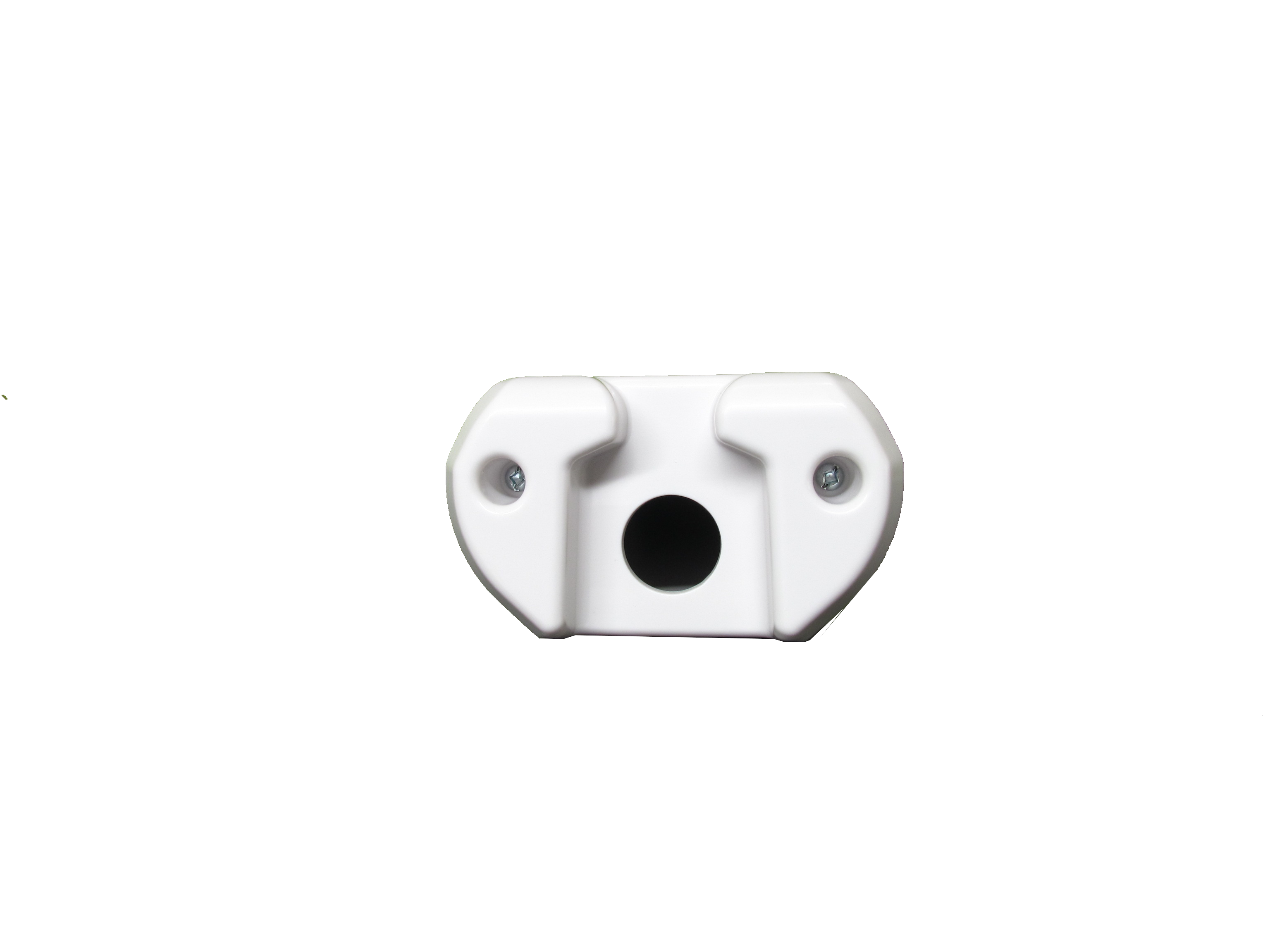

  • Construction: Light-weight extruded aluminum body with white powder-coated finish. White ABS endcaps with UL94-V0 5VA rating. Optional steel wire-guard.
  • Standard Dimensions: 54~115 x 10 x 6 cm (22~46 x 4 x 2.5 in)
  • Standard Weight: 1.2 – 2.9 kg (2.2 – 6.5 lb.)

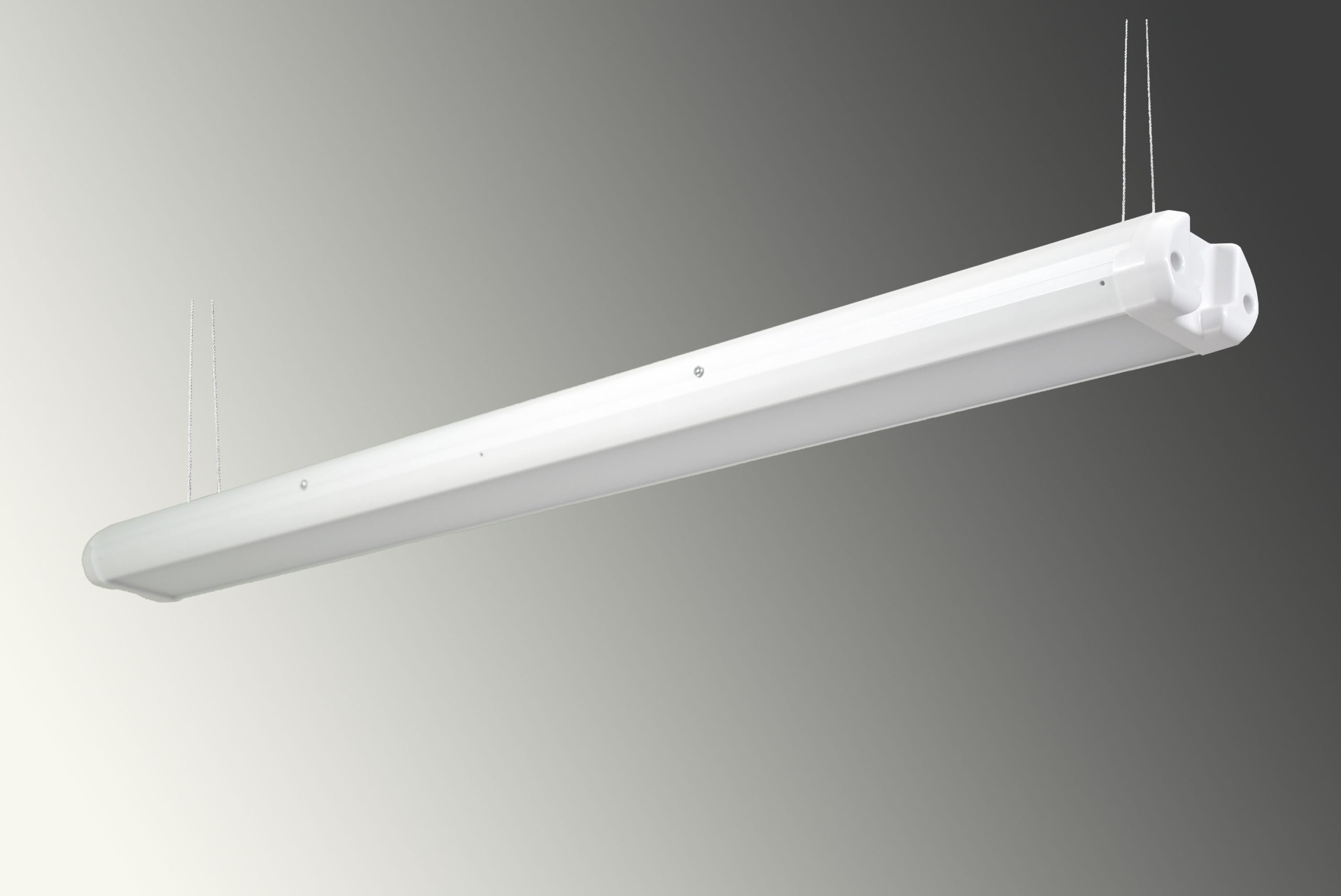

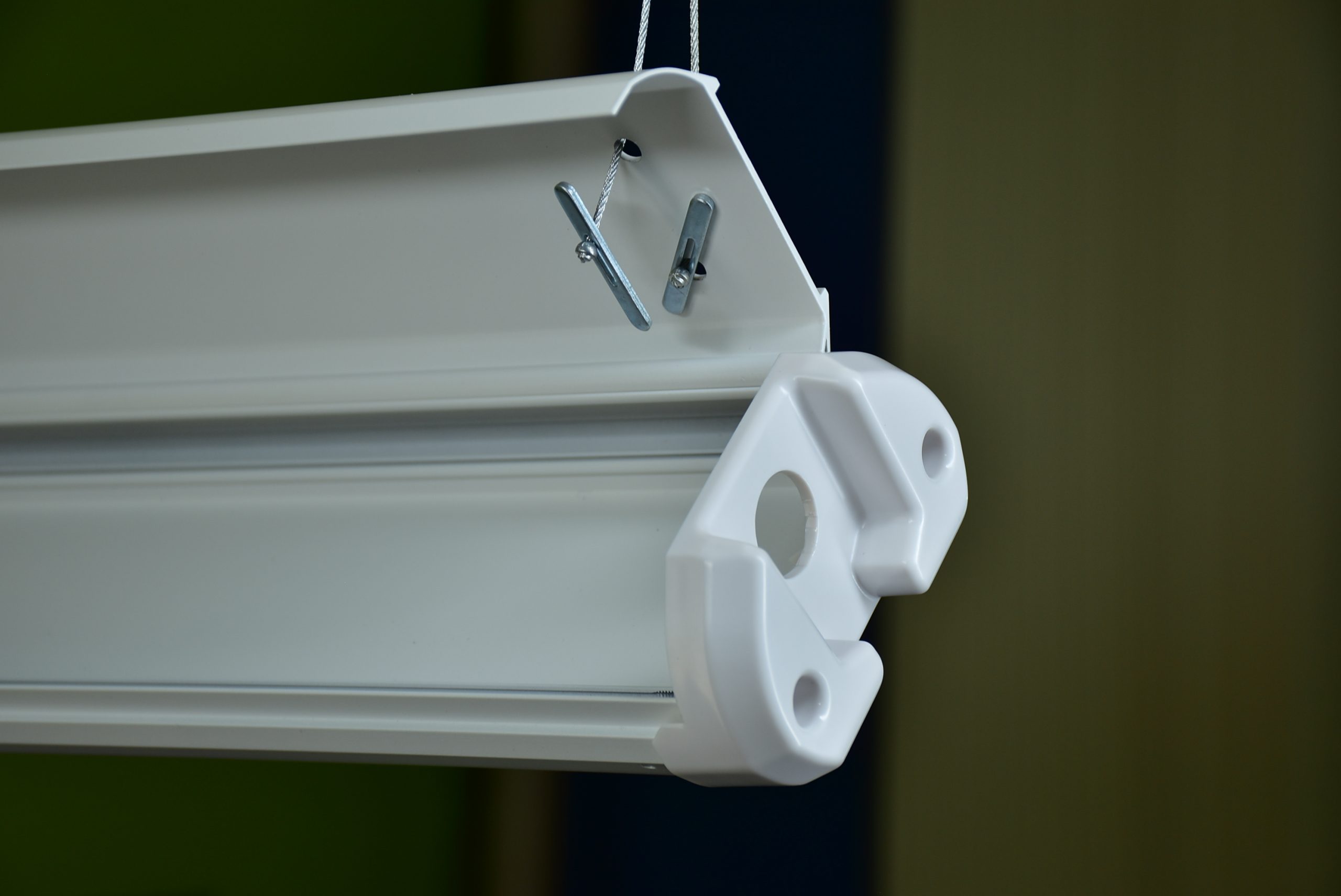

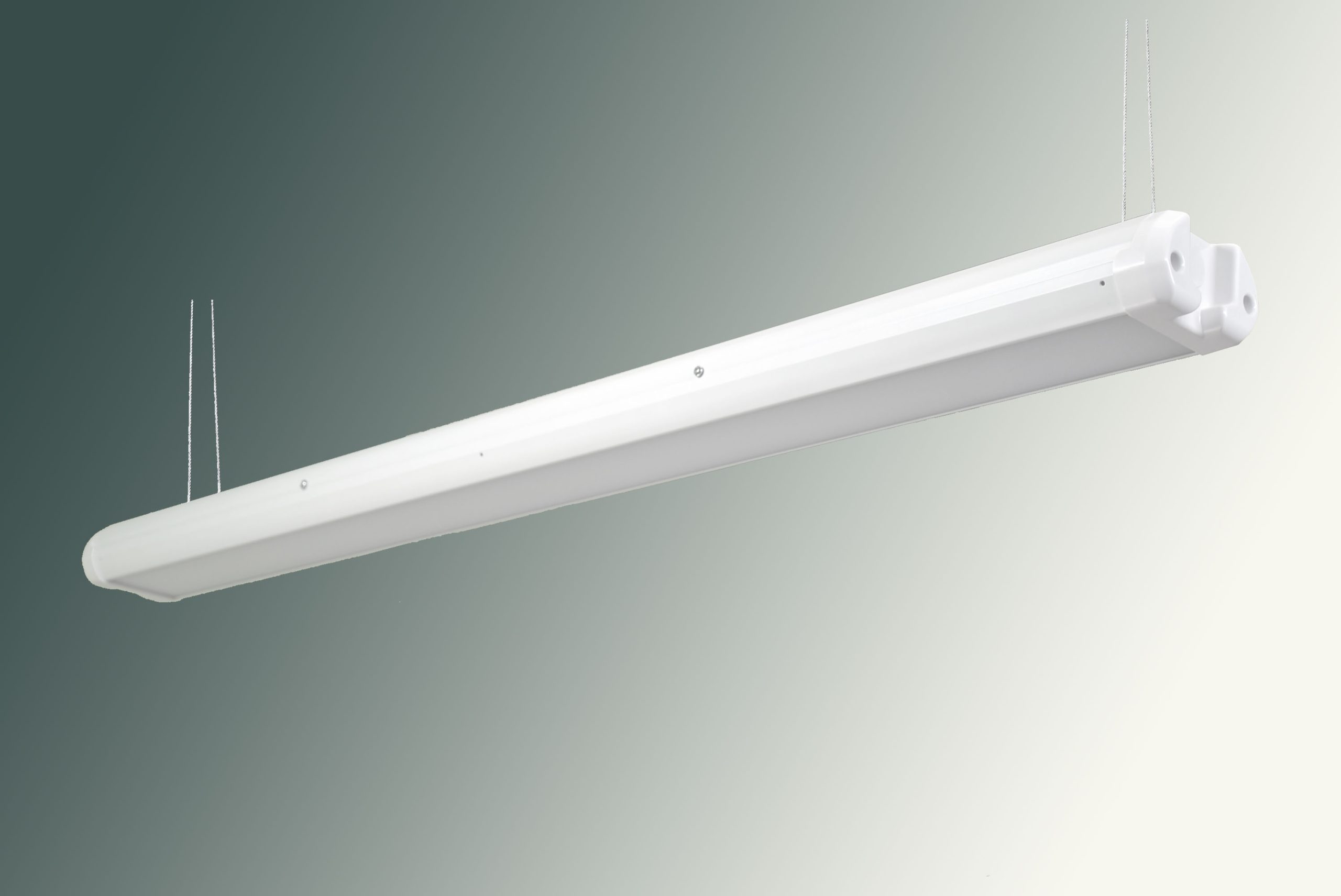

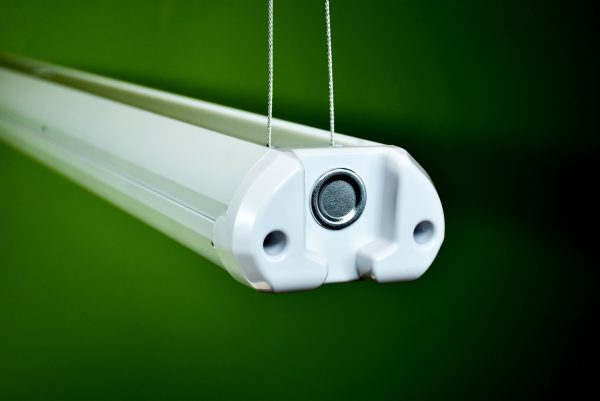

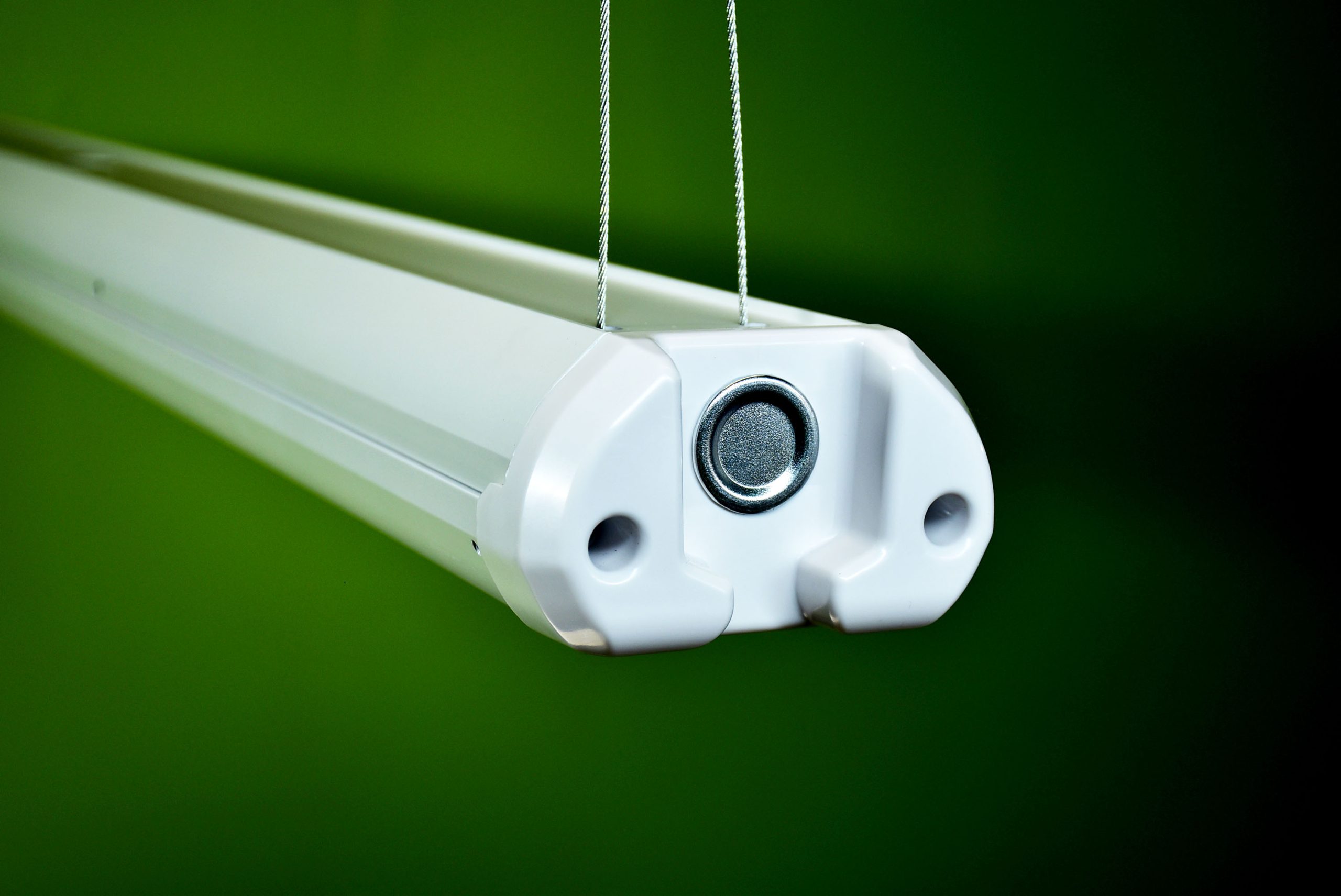

  • Installation: Simple and easy maintenance/electrical access. Installation by screws onto ceiling, wall, etc.; or by suspension kit.
  • Available Features:
    • 0/1-10V dimming
    • Impact-protection wire guard

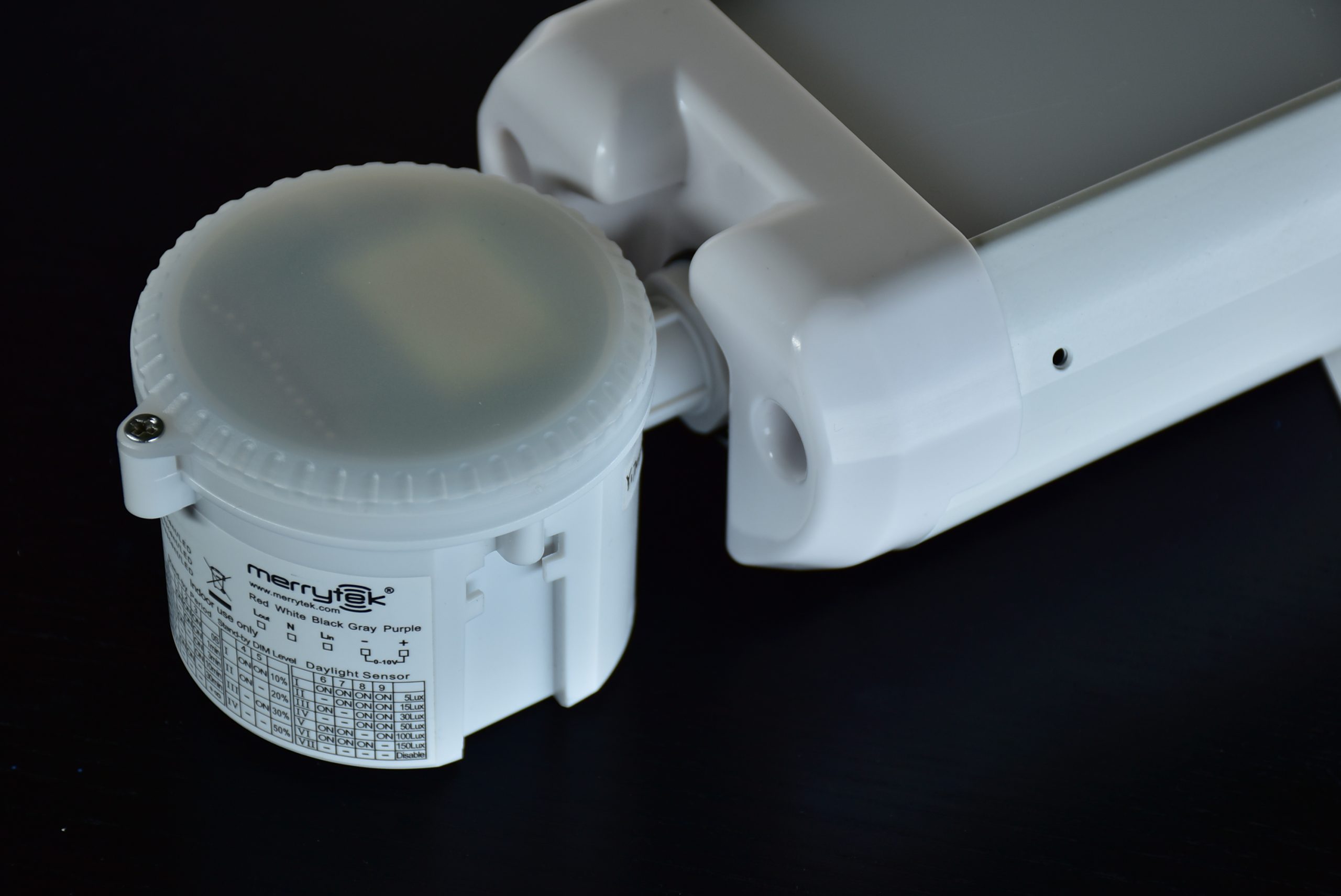

    • Integrated multifunctional occupancy sensor with wireless control
    • capabilities
    • Surge protection

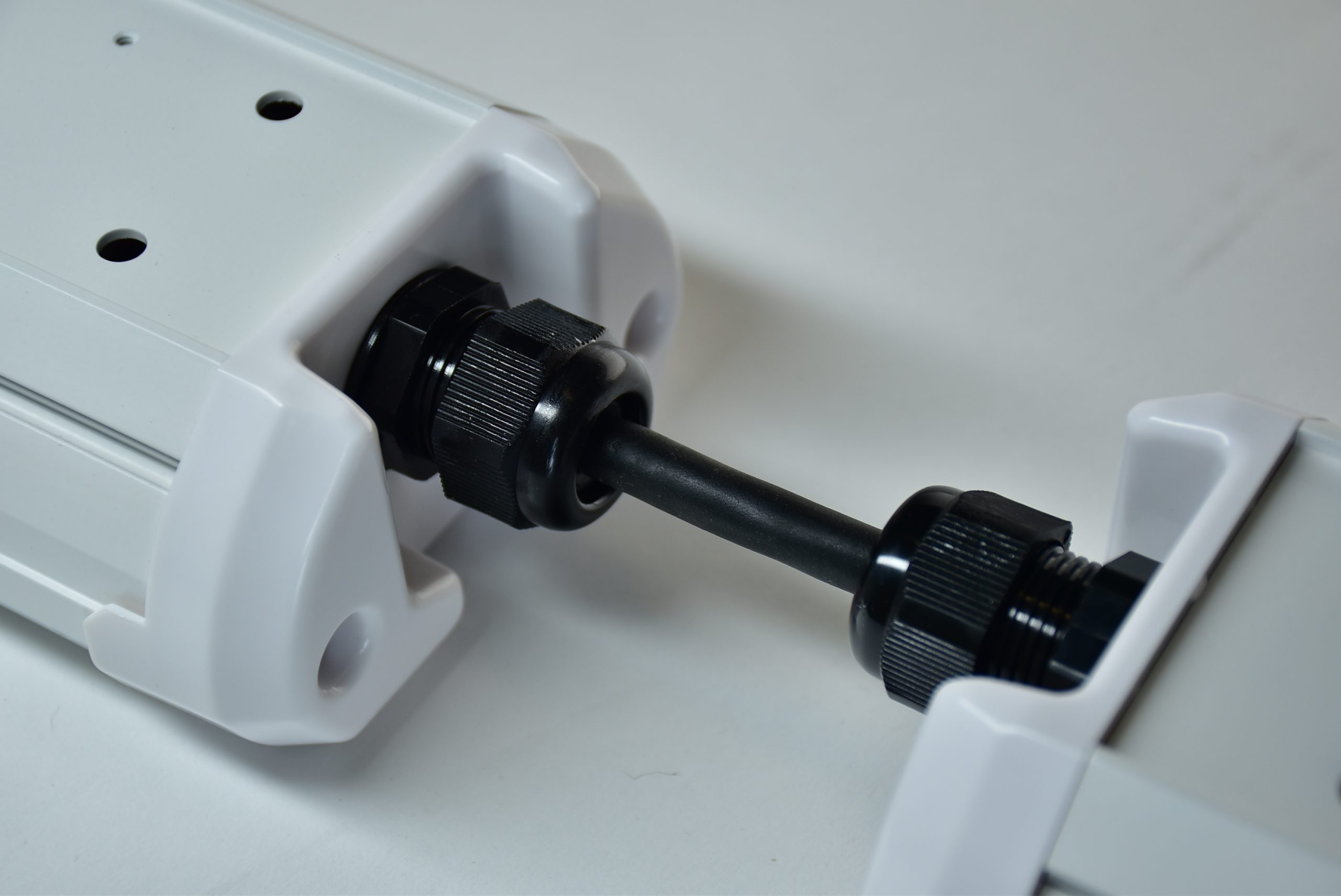

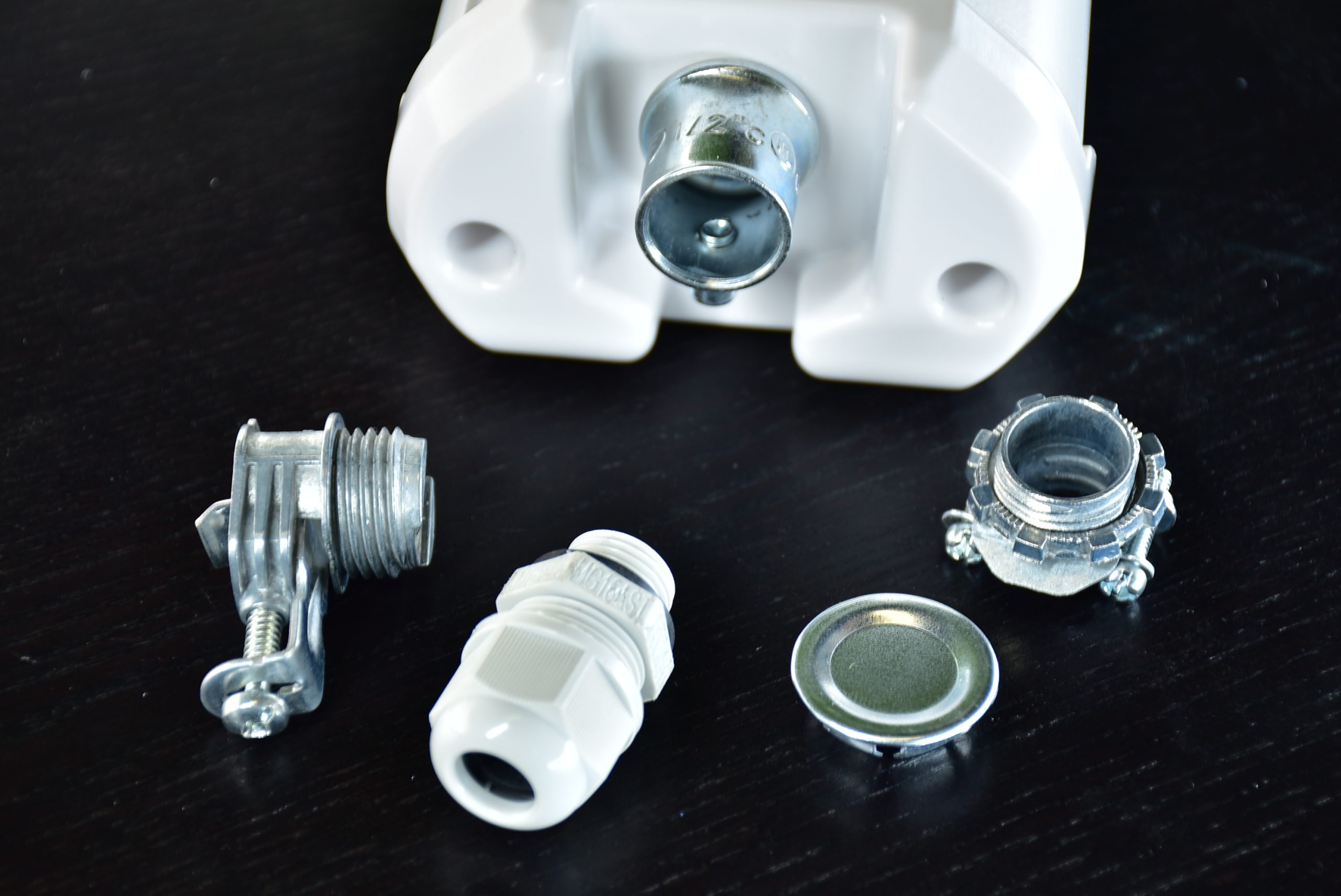

    • Wire-in compartment with daisy-chaining compatibility

CONFIGURATION

  • 0/1-10V Dimming
  • Multifunction Occupancy Sensor with Wireless Capabilities
  • Optical Diffuser Options
  • Additional Surge Protection
  • Mesh Guard
