Marici LED Linear VP Series

MARICI-VP series is designed to thrive as a robust, compact, weather-proof lighting. With IP66 rating, it can operate in dusty, wet environments with minimal losses in performance, lifespan and reliability.

Use:
industrial
commercial

Application:
Car wash, Dusty factory,Warehouse,Garage,Subway station,Supermarket,Workshop,Swimming pool,

Description

The MARICI-VP linear luminaire series is designed for applications that desire robust, weather-proof lighting. It is rated IP66, which is defined for continual operation in extremely dusty and wet environments with minimal losses in performance and practically no decrease in lifespan or reliability.

SPEC SHEET

Variations SKU NUMBERDelivered Lumens (lm)Wattage (W)Efficacy (lm/W)Input VoltageSize (cm)Weight (KG)
MAR-VP-00253,50025140100-347V60X9.5X81.0
MAR-VP-00607,50054140100-347V120X9.5X81.6
MAR-VP-008014,000100140100-347V240X9.5X83.5

MAR-VPXXXX Specifications:

  • Listing: cULus Certified. DLC QPL Listed.
  • Available CRI: ≥80
  • Color Temperature (CCT): 3000K, 4000K, 5000K Selectable
  • Expected L70 Lifespan: over 100,000 hours
  • Major Feature: IP66 ingress protection; Motion sensor compatible; Emergency Back-up Battery compatible; 0-10VDC dimming compatible.
  • Input Line Voltage: 100-347 VAC; 50/60 Hz
  • Operating Temperature: -40˚C to +50˚C
  • Housing: Light-weight, flexible, durable polycarbonate construction to protect from vandalism and varying degrees of high impact.
  • Lens: UV-stabilized PC diffuser for glare elimination.
  • Dimensions: 120x 10 x 8 cm [48 x 4 x 3 in]

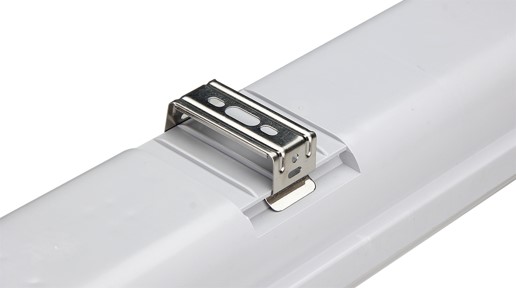

  • Installation: Installed by brackets (ceiling, wall, etc.), or by suspension.
  • Warranty: 5 years.
  • Certification/Standards: Certified for compliance with relevant safety standards by UL. Compliant with IESNA Standards for LM-79 for luminaire performance and LM-80 for LED performance characteristics.
